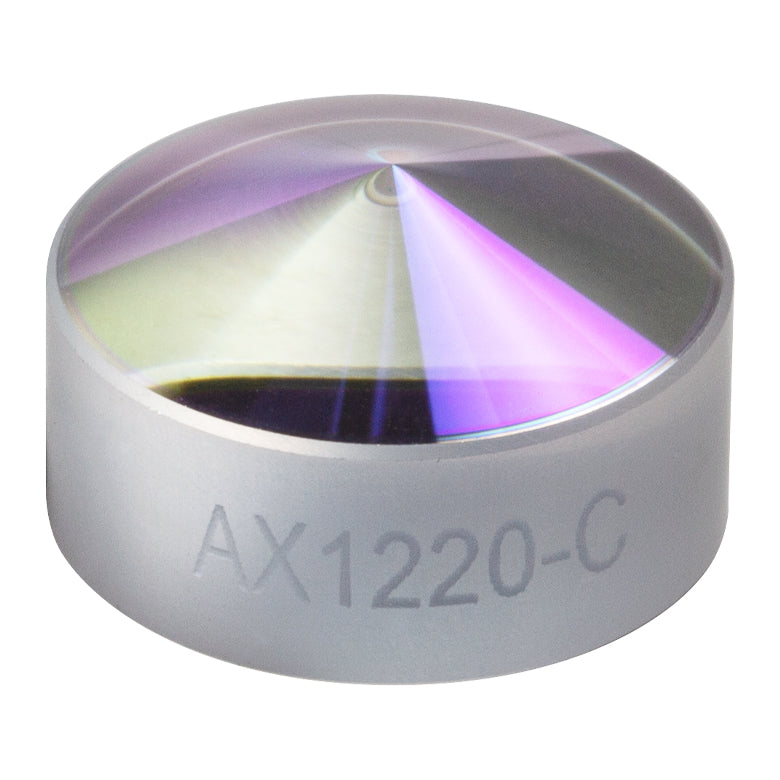

T-AX1220-C - 20.0°, 1050 - 1700 nm AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

Fosco Connect Part No.: T-AX1220-C

$ 350.00 or

T-AX1220-C - 20.0°, 1050 - 1700 nm AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

These axicons are AR coated for the 1050 - 1700 nm range, which makes them great for applications into the near IR (NIR). This covers common wavelengths used in applications such as: optical coherence tomography (OCT), optical trapping, and laser drilling. In these applications, an axicon can increase the depth of focus in the sample arm.

Diameter Ø1/2" (Ø12.7 mm)

Physical Angle (α) 20.0°

Deflection Angle (β) 9.7°

Center Thickness (t_c) 7.3 mm

AR Coating 1050 - 1700 nm R_avg<0.5%

AR Coating Plot

Reference Drawing
