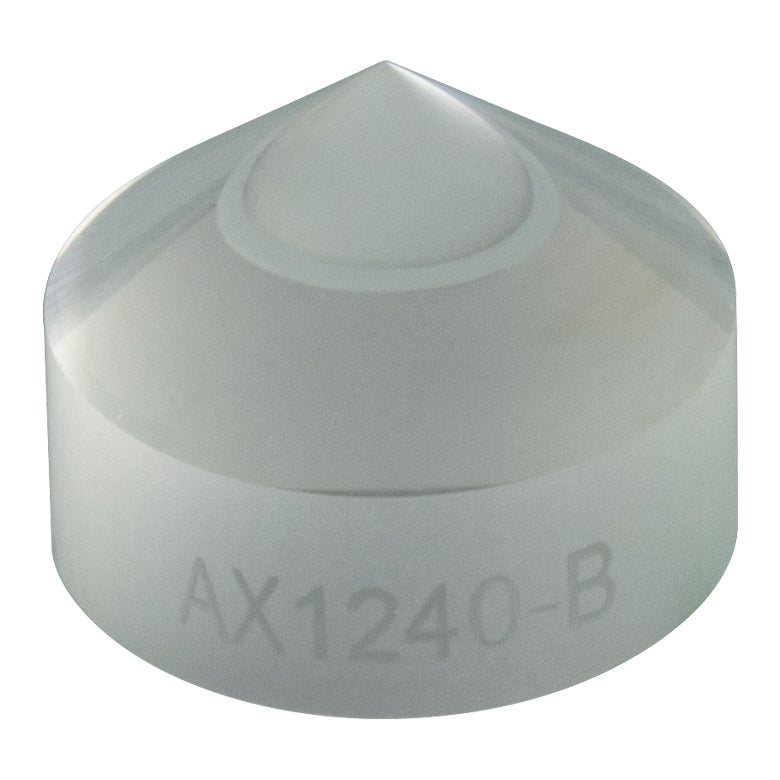

T-AX1240-B - 40.0°, 650 - 1050 nm, AR Coated UVFS, Ø1/2" (Ø12.7 mm) Ax

T-AX1240-B - 40.0°, 650 - 1050 nm, AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

Fosco Connect Part No.: T-AX1240-B

$ 350.00 or

T-AX1240-B - 40.0°, 650 - 1050 nm, AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

These axicons are AR coated for the 650-1050 nm range making them suitable for many near IR (NIR) applications, such as optical traps and corneal surgeries.

Diameter Ø1/2" (Ø12.7 mm)

Physical Angle (α) 40.0°

Deflection Angle (β) 29.0°

Center Thickness (t_c) 10.3 mm

AR Coating 650 - 1050 nm R_avg<0.5%

AR Coating Plot

Reference Drawing
