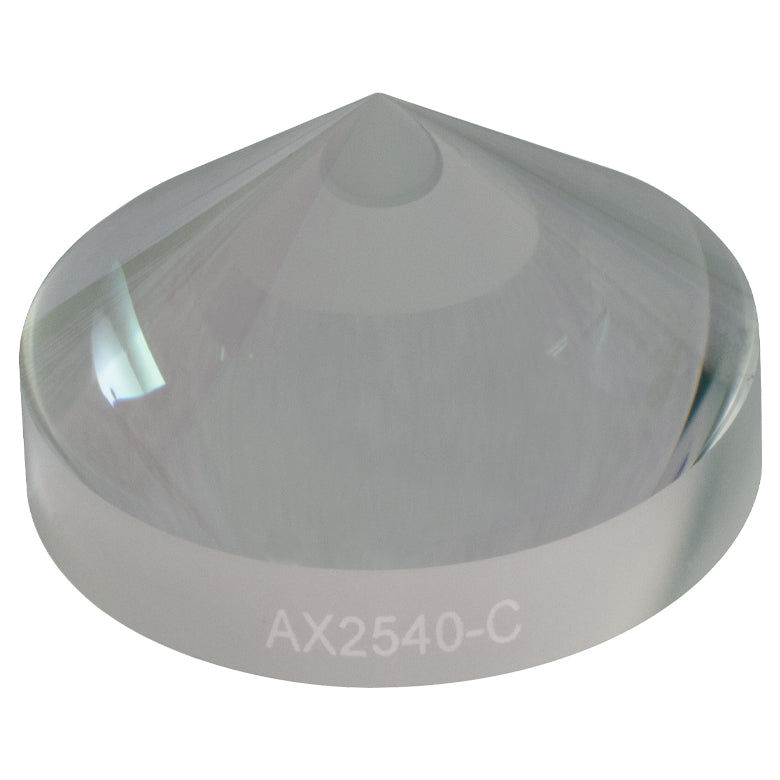

T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon
T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon
These axicons are AR coated for the 1050 - 1700 nm range, which makes them great for applications into the near IR (NIR). This covers common wavelengths used in applications such as: optical coherence tomography (OCT), optical trapping, and laser drilling. In these applications, an axicon can increase the depth of focus in the sample arm.

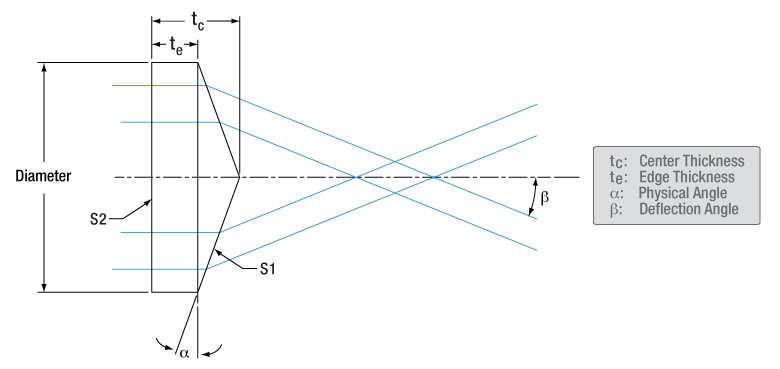

Diameter 40.0°
Deflection Angle (β) 28.4°
Center Thickness (tc) 15.7 mm

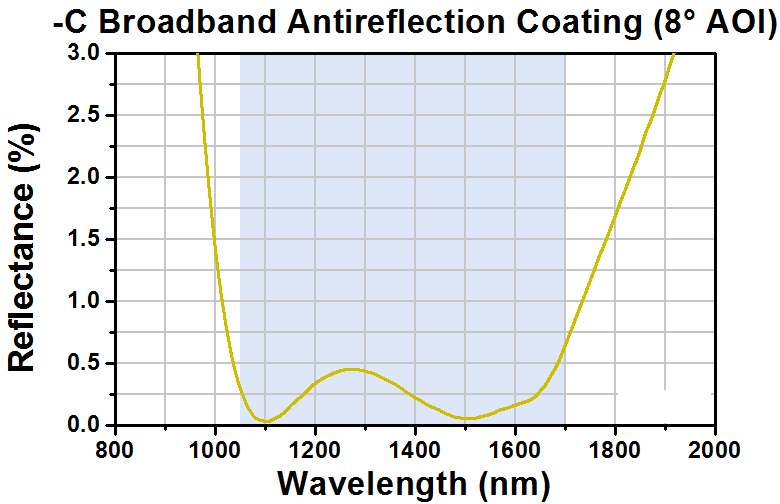

AR Coating 1050 - 1700 nm Ravg<0.5%
