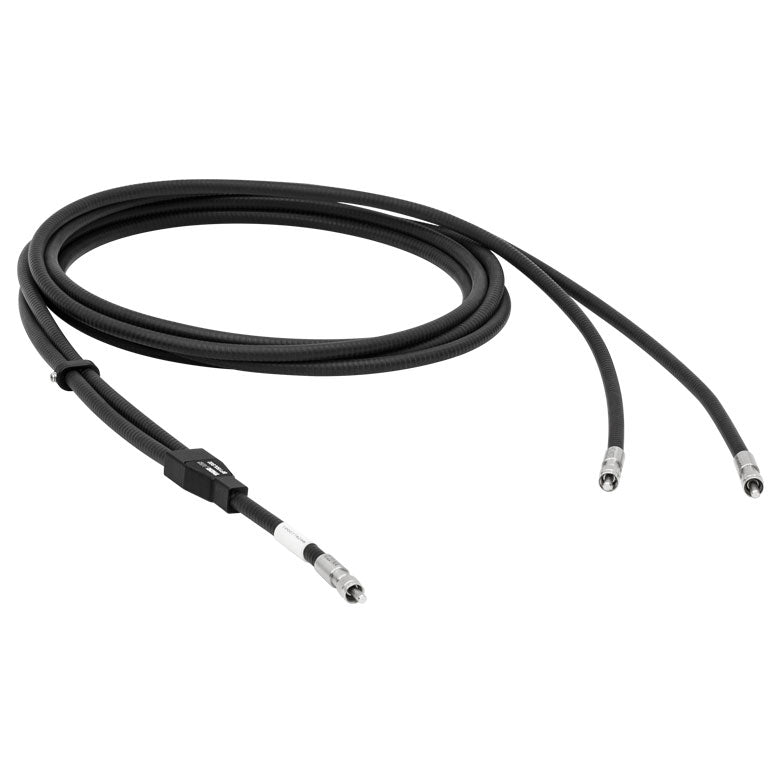

T-BFY50LS02 - Bifurcated Fiber Bundle, Ø50 µm, Low OH, SMA905, 2 m
T-BFY50LS02 - Bifurcated Fiber Bundle, Ø50 µm, Low OH, SMA905, 2 m
- 400 - 2200 nm or 400 - 2400 nm Wavelength Range (See Table Below)
- SMA905 Connectors Terminate All Ends
- 2 m Total Length from Common End to Split Ends
- High-Quality FT061PS Ø6.1 mm Stainless Steel Tubing with Black Plastic Sheath
- SMA Connectors
- Wavelength Range 400 - 2400 nm
- Fiber Item # FG050LGA
- # of Fibers 2
- Core Diameter 50 ± 1 µm
- Cladding Diameter 125 +1/-2 µm
- Coating Diameter 250 ± 10 µm
- NA 0.22 ± 0.02
- Min Bend Radius (Short Term / Long Term) 19 / 32 mm
- Common End Face Drawing
- Connector Material SMA905 Stainless Steel
