T-GCH25-75 - Heater Assembly for Ø9, Ø19, or Ø25 mm x 75 mm Glass Cells, 15 W per Heating Element
T-GCH25-75 - Heater Assembly for Ø9, Ø19, or Ø25 mm x 75 mm Glass Cells, 15 W per Heating Element
- Compatible with Ø25 mm Glass Cells
- Adapters for Ø9 mm or Ø19 mm Glass Cells
- 15 W Heating Power per Element (Two Elements per Assembly) with Thermistor
- Incorporates Hirose Connectors and Includes Cables for Use with TC300 Heater Temperature Controller

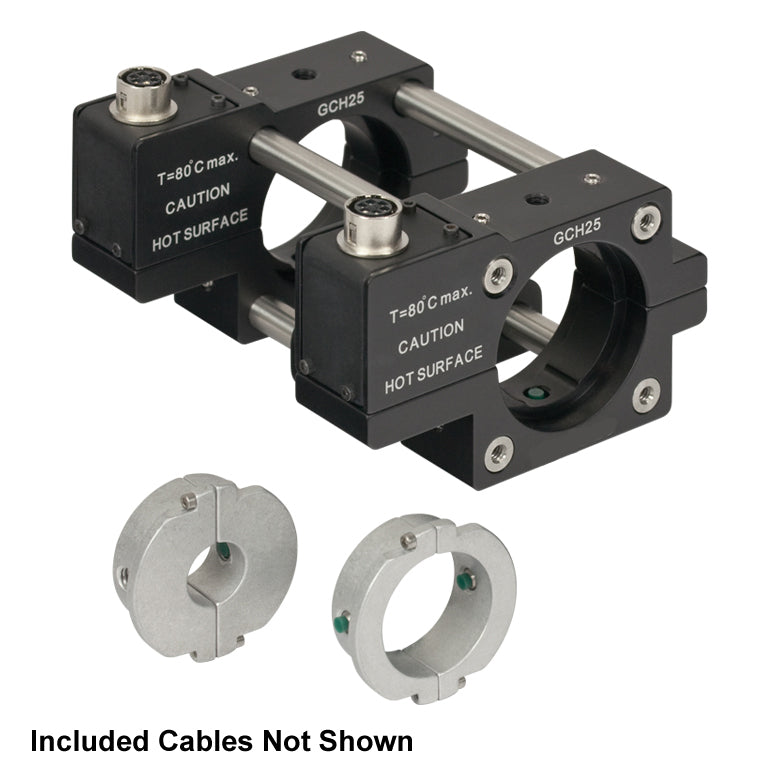

The T-GCH25-75 glass cell heater uses two built-in heating elements to raise the temperature of a vapor cell to as much as 50 °C (when room temperature is 25 °C; limited by the heater unit). The temperature is monitored using a Minco Thin Film Element sensor. Adapter rings for Ø9 mm and Ø19 mm cells are included. Without the use of adapters, the heater mounts Ø25 mm cells. This allows the heater to be used with our standard reference cells. The heater incorporates Ø6 mm cage rods and is compatible with our 30 mm cage system.
| Specifications | |
|---|---|
| Heater Power | 15 W (Max) @ 24 V ± 20% 3.8 W @ 12 V 0.90 W @ 6 V |
| Max Temperature | 50 °C |
| Input Voltage | 24 VDC (Max) |
| Heater Resistance | 38.4 Ω (Typ.) |
| Connector Type | 6-Pin Hirose HR10A-7R-6S |
| Cable Length | 3 m (10 ft) |

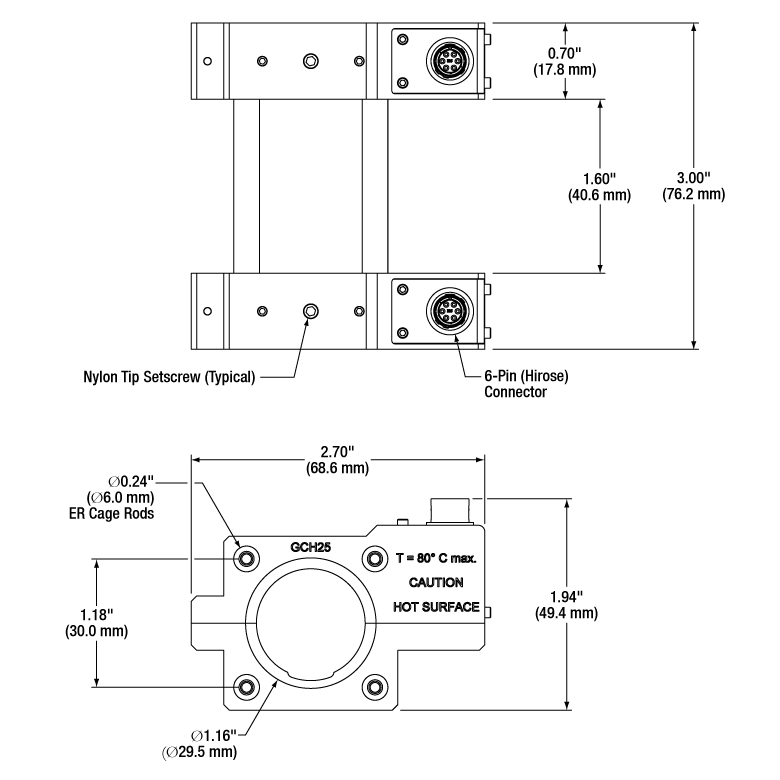

| Simplified Drawing |  |
