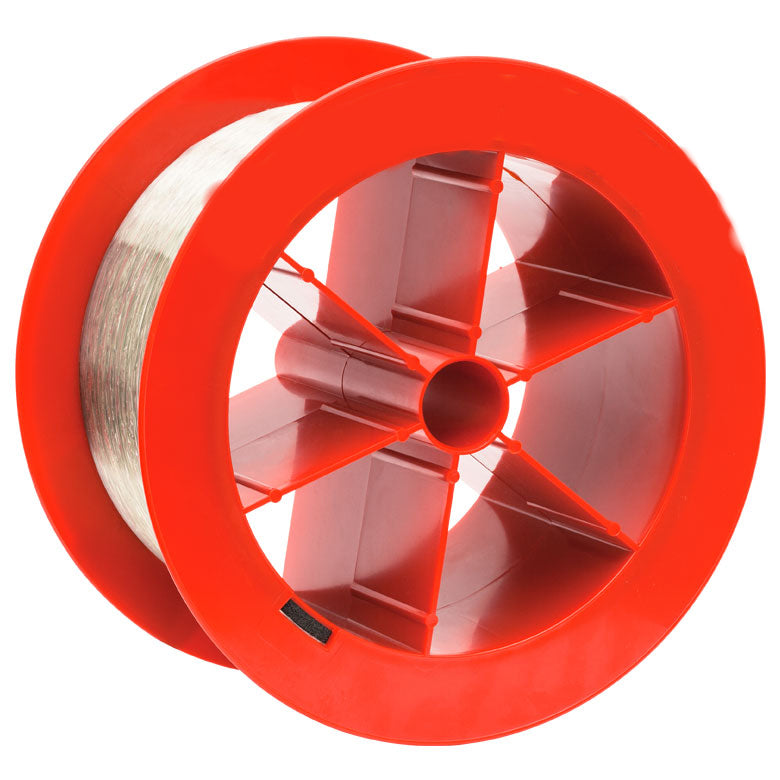

T-HB1060Z - Polarizing Fiber for 1064 nm, Pricing Per Meter
T-HB1060Z - Polarizing Fiber for 1064 nm, Pricing Per Meter
Features

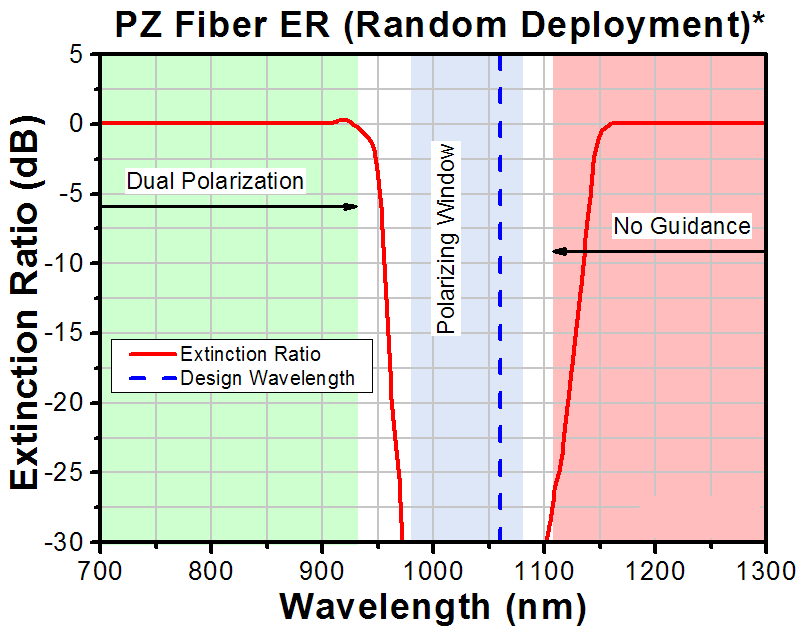

- ~100 nm Polarizing Window
- ≥30 dB Extinction Ratio
- Design Wavelength: 830, 1064, or 1550 nm
- Applications:
- Fiber Optic Gyroscopes
- Coherent Communications
- Current Sensors
- Operating Wavelength 1064 nm
- Cladding Diameter 125 ± 1 µm
- Coating Diameter 245 ± 15 µm
- Mode Field Diameter 6 - 8 µm @ 1064 nm
- Numerical Aperture (NA) 0.14
- Cladding Index 1064 nm: 1.45635
- Core Index 1064 nm: 1.44963
- Cut-Off (Typ.) <1000 nm
- Attenuation ≤0.02 dB/m @ 1060 nm
- Beat Length ≤0.8 mm @ 633 nm
- Extinction Ratio ≥30 dB
- 20 dB Fast Edge ≤1015 nm
- 3 dB Slow Edge ≥1105 nm

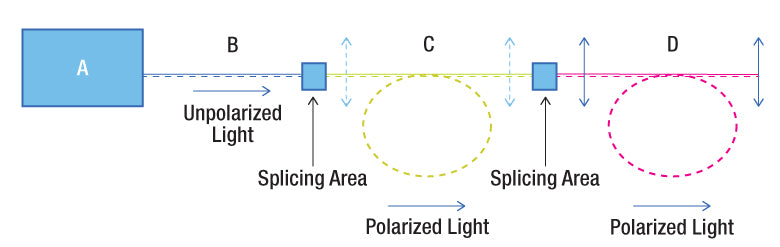

| Fiber | A | B | C | D |
|---|---|---|---|---|
| T-HB1060Z | 1060 nm Laser Source |
SM980 Fiber | Coiled HB1060Z Fiber | Aligned PM980-XP Fiber |
| Fiber | HB1060Z |
|---|---|
| Operating Wavelength | 1064 nm |
| Cladding Diameter | 125 ± 1 µm |
| Coating Diameter | 245 ± 15 µm |
| Mode Field Diameter | 6 - 8 µm @ 1064 nm |
| Numerical Aperture | 0.14 |
| Core Index | 1064 nm: 1.45635 |
| Cladding Index | 1064 nm: 1.44963 |
| Cut-Off Wavelength (Typical) | <1000 nm |
| Attenuation | ≤0.02 dB/m @ 1060 nm |
| Beat Length | ≤0.8 mm @ 633 nm |
| Extinction Ratio | ≥30 dB |
| 20 dB Fast Edge | ≤1015 nm |
| 3 dB Slow Edge | ≥1105 nm |
| Core-Cladding Concentricity | ≤1 µm |
| Coating-Cladding Offset | ≤10 µm |
| Coating Material | Dual Acrylate |
| Operating Temperature | -40 to 85 °C |
| Proof Test Level | 1% (100 kpsi) |
