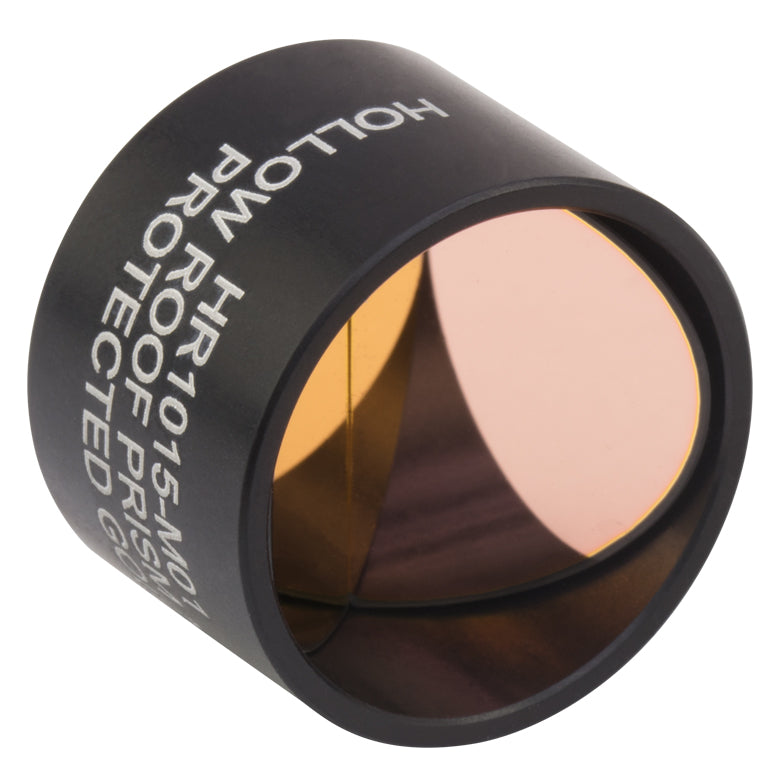

T-HR1015-M01 - Ø1" Mounted Hollow Roof Prism Mirror, Protected Gold
T-HR1015-M01 - Ø1" Mounted Hollow Roof Prism Mirror, Protected Gold
Unthreaded 1" Outer Diameter for Mounting Inside a Ø1" Lens Tube - Five Coatings Available:
- UV Enhanced Aluminum: 250 nm - 450 nm
- Protected Aluminum: 450 nm - 20 µm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1 µm
- Protected Gold: 800 nm - 20 µm
- >Ø18.0 mm Clear Aperture
- UV Fused Silica Substrate
- Coating Protected Gold
- Reflectance (Click for Plot) Ravg > 96% (800 nm - 20 µm)
- AOI Relative to Coated Face 0° to 45°
- Damage Threshold (Pulsed) 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm)
- Damage Threshold (CW) 500 W/cm (1.070 µm, Ø0.089 mm) 750 W/cm (10.6 µm, Ø0.339 mm)
Damage Threshold Specifications
| Coating Designation (Item # Suffix) |
Type |
Damage Threshold |
| -M01 | Pulsed | 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm) |
| CW | 500 W/cm (1070 nm, Ø0.089 mm) 750 W/cm (10.6 µm, Ø0.339 mm) |
