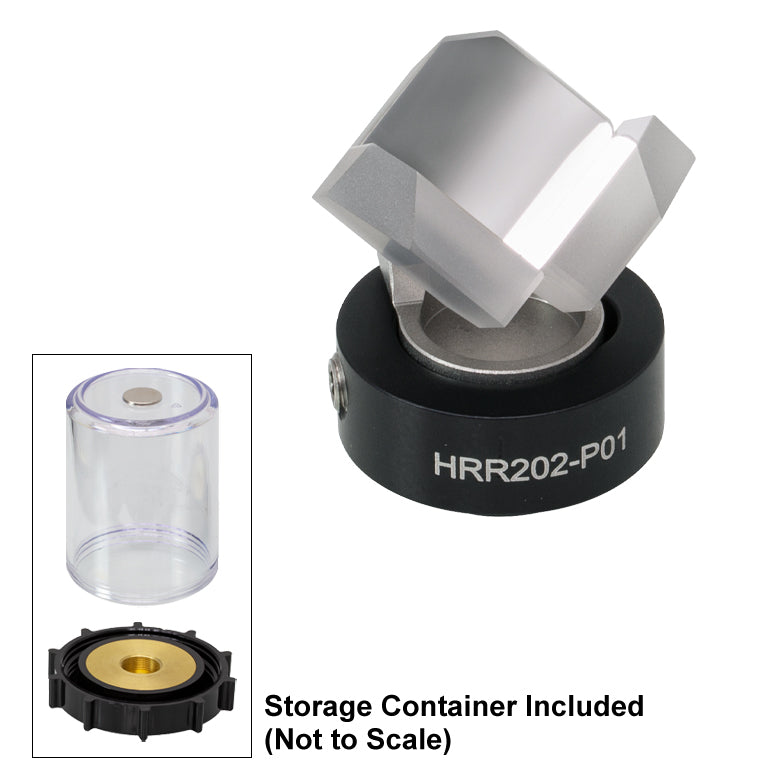

T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
- Protected Silver Coating
- N-BK7 or UV Fused Silica Substrates
- SM05- or SM1-Threaded Mounts
- Clear Aperture Entrance: Ø0.60" (15.2 mm) Single Leg: Ø0.28" (7.1 mm)
- Coating Protected Silver
- Reflectance per Surface (Average) >97.5% (450 nm - 2 µm) >96% (2 - 20 µm)
- Substrate
- Substrate Thickness 4 mm
- Surface Flatness λ/4 at 633 nm
- Dimensions 0.99" x Ø0.93" (25.1 mm x Ø23.7 mm)
- Mount Threading SM05 (0.535"-40)
