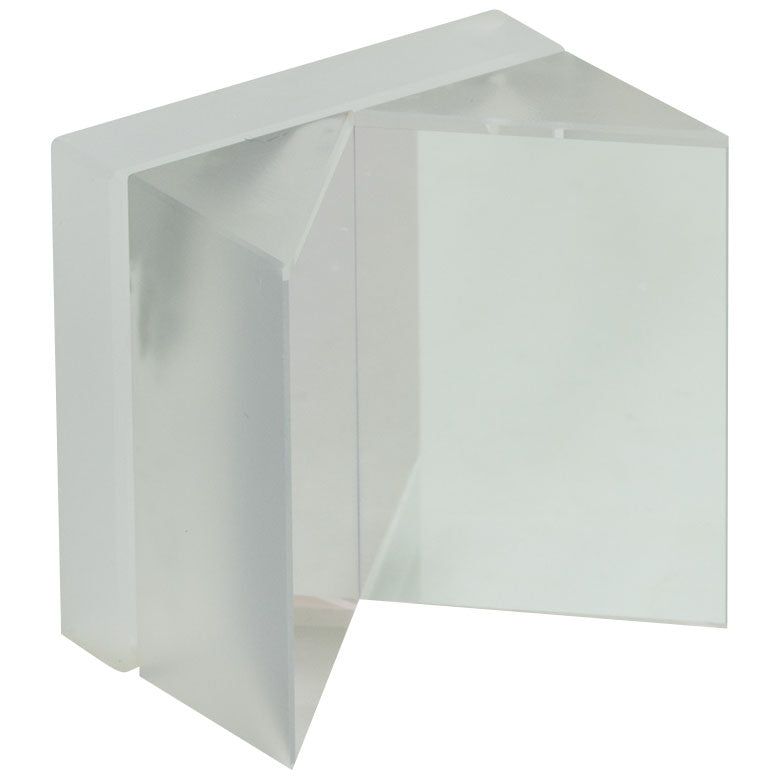

T-HRS1015-G01 - 1" x 1" Hollow Roof Prism Mirror, Protected Aluminum
T-HRS1015-G01 - 1" x 1" Hollow Roof Prism Mirror, Protected Aluminum

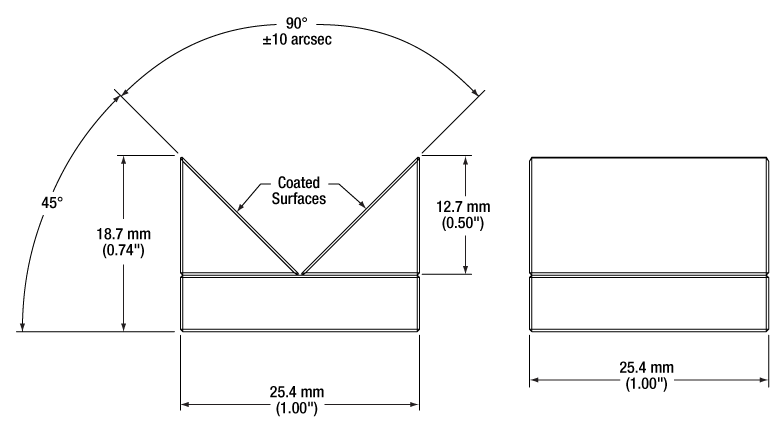

- 1.00" x 1.00" (25.4 mm x 25.4 mm) Substrate Dimension
- Six Coatings Available:
- UV Enhanced Aluminum: 250 nm - 450 nm
- Protected Aluminum: 450 nm - 20 µm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1 µm
- Protected Gold: 800 nm - 20 µm
- Unprotected Gold: 800 nm - 20 µm
- Clear Aperture >80% of Face Dimensions
- UV Fused Silica Substrate
- Coating Protected Aluminum
- Reflectance (Click for Plot) Ravg > 90% (450 nm - 2 µm)
Ravg > 95% (2 µm - 20 µm) - AOI Relative to Coated Face 0° to 45°
- Damage Threshold (Pulsed) 0.3 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm)
- Damage Threshold (CW) 100 W/cm (1.070 µm, Ø0.098 mm) 350 W/cm (10.6 µm, Ø0.339 mm)
