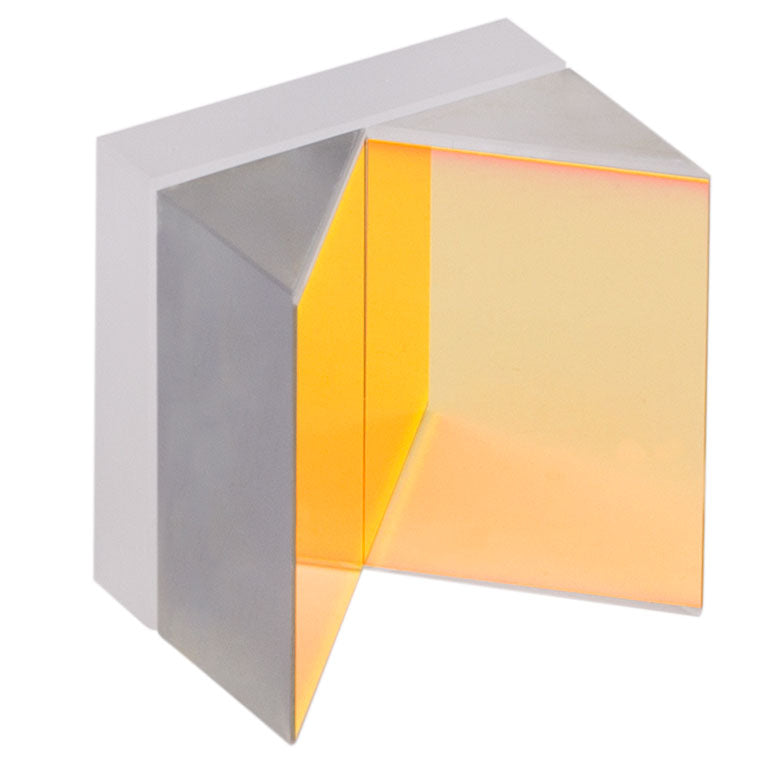

T-HRS1015-M01 - 1" x 1" Hollow Roof Prism Mirror, Protected Gold

Product Drawing

• 1.00" x 1.00" (25.4 mm x 25.4 mm) Substrate Dimension
• Six Coatings Available:
  • UV Enhanced Aluminum: 250 nm - 450 nm
  • Protected Aluminum: 450 nm - 20 µm
  • Protected Silver: 450 nm - 20 µm
  • Ultrafast-Enhanced Silver: 750 nm - 1 µm
  • Protected Gold: 800 nm - 20 µm
  • Unprotected Gold: 800 nm - 20 µm
• Clear Aperture >80% of Face Dimensions
• UV Fused Silica Substrate
• Coating Protected Gold
• Reflectance (Click for Plot) R_avg > 96% (800 nm - 20 µm)
• AOI Relative to Coated Face 0° to 45°
• Damage Threshold (Pulsed) 2 J/cm² (1064 nm, 10 ns, 10 Hz, Ø1.000 mm)
• Damage Threshold (CW) 500 W/cm (1.070 µm, Ø0.089 mm) 750 W/cm (10.6 µm, Ø0.339 mm)

Damage Threshold Specifications
