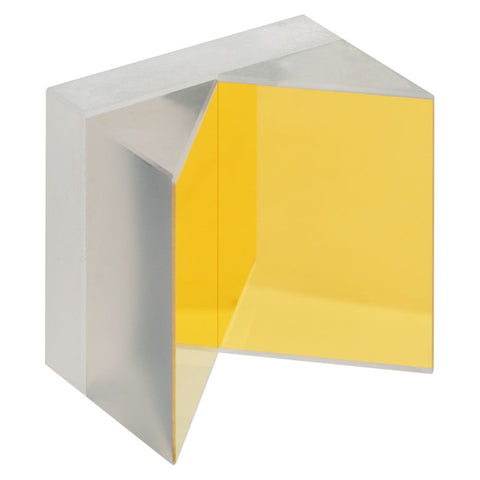

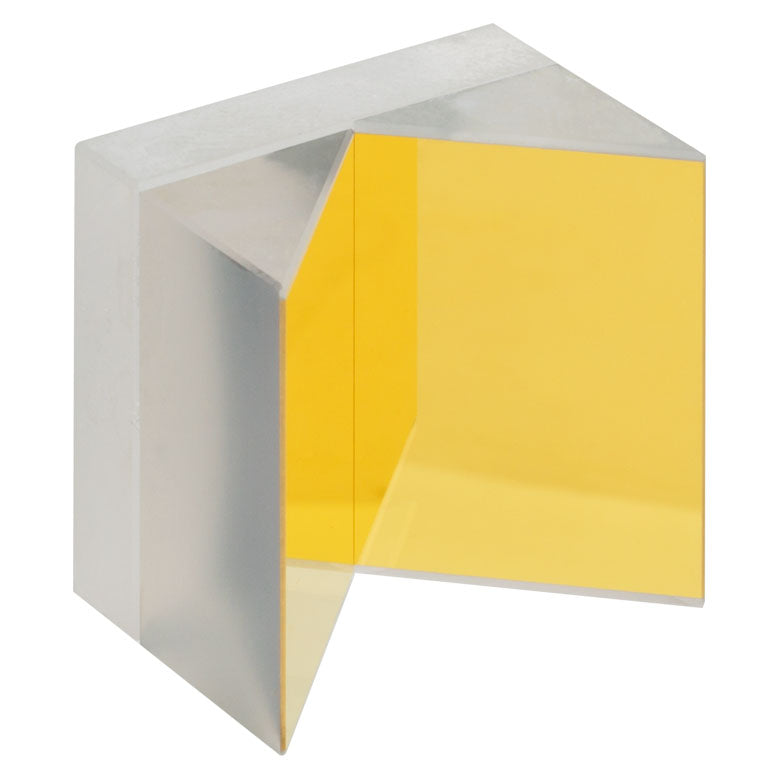

T-HRS1015-M03 - 1" x 1" Hollow Roof Prism Mirror, Unprotected Gold

Product Drawing

• 1.00" x 1.00" (25.4 mm x 25.4 mm) Substrate Dimension
• Six Coatings Available:
  • UV Enhanced Aluminum: 250 nm - 450 nm
  • Protected Aluminum: 450 nm - 20 µm
  • Protected Silver: 450 nm - 20 µm
  • Ultrafast-Enhanced Silver: 750 nm - 1 µm
  • Protected Gold: 800 nm - 20 µm
  • Unprotected Gold: 800 nm - 20 µm
• Clear Aperture >80% of Face Dimensions
• UV Fused Silica Substrate
• Coating Unprotected Gold

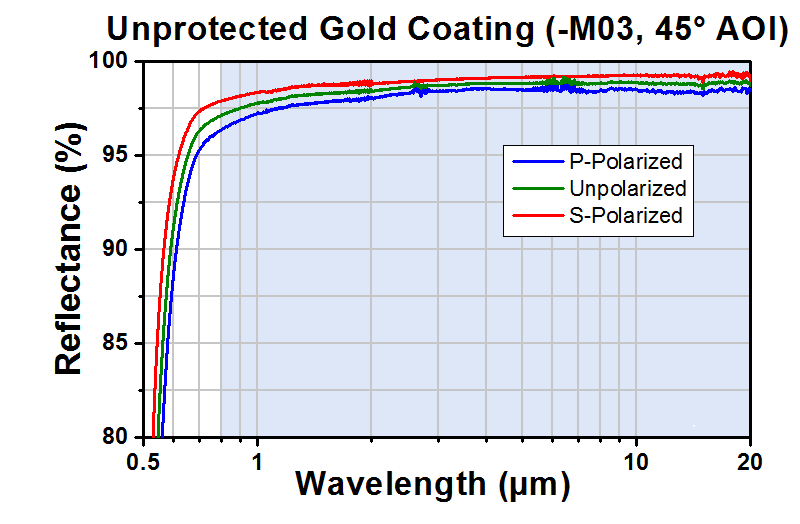

• Reflectance (Click for Plot) R_avg > 97% (800 nm - 20 μm)
• AOI Relative to Coated Face 0° to 45°
