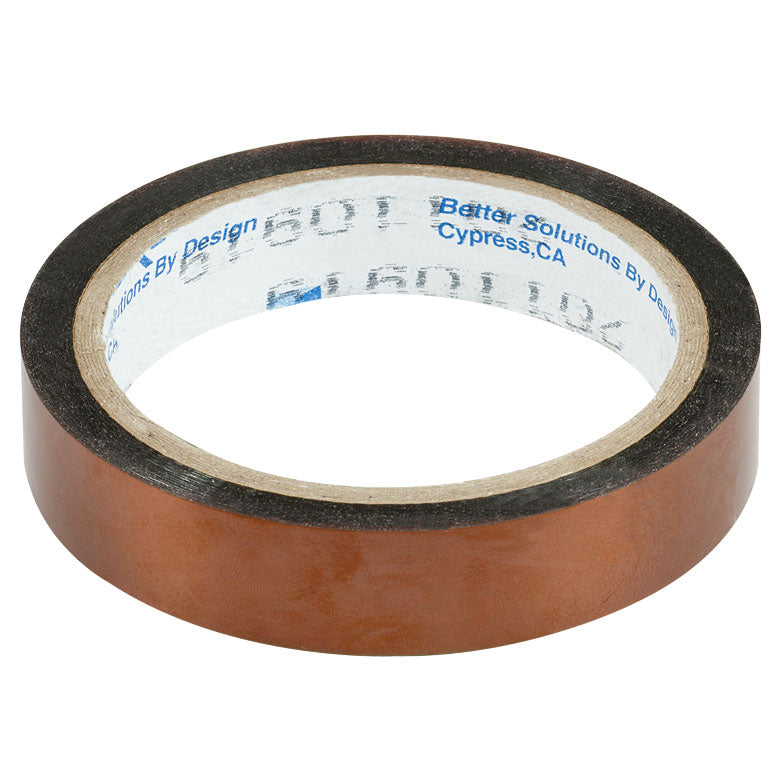

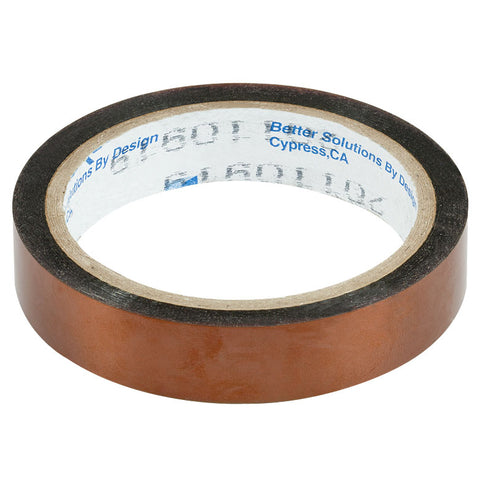

T-KAP22-075 - Kapton® Tape, 3/4" Wide x 36 yd Long (1.9 cm x 32.9 m)
T-KAP22-075 - Kapton® Tape, 3/4" Wide x 36 yd Long (1.9 cm x 32.9 m)
Features
- Width: 3/4" (1.9 cm)
- Length: 36 yd (32.9 m)
- Removes Easily without Leaving a Residue
- Wide Usage Range: -100 °F to 500 °F (-73°C to 260 °C)
| Specifications | |
|---|---|
| Width | 3/4" (1.9 cm) |
| Length | 36 yd (32.9 m) |
| Kapton® Type | HN |
| Film Thickness | 1.0 Mil (0.03 mm) |
| Total Thickness | 2.5 Mil (0.07 mm) |
| Color | Amber |
| Adhesive | Cross-Linked Silicon |
| Breaking Strength | 30 lb/in (5.4 kg/cm) |
| Elongation at Break | 60% |
| Adhesion to Steel | 18 oz/in (200 g/cm) |
| Dielectric Strength | 7,500 Volts |
| Insulation Class | 356 °F (180 °C) |
| Temperature Range | -100 °F to 500 °F (-73 °C to 260 °C) |
| Storage Conditions | Dry Location between 55 °F and 85 °F (13 °C and 30 °C) |
