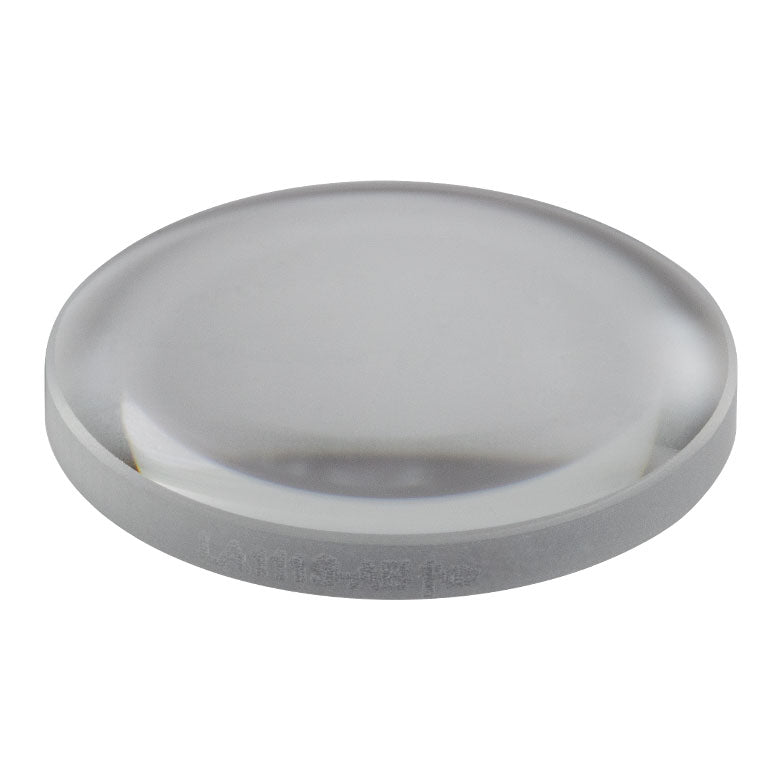

T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm
T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 18.0 mm
- Focal Length (mm) 49.8
- Diopter +20.1
- Radius of Curvature (mm) 25.8
- Center Thickness (mm) 3.4
- Edge Thickness (mm) 1.8
- Back Focal Length (mm) 47.6
- Product Reference Drawing
