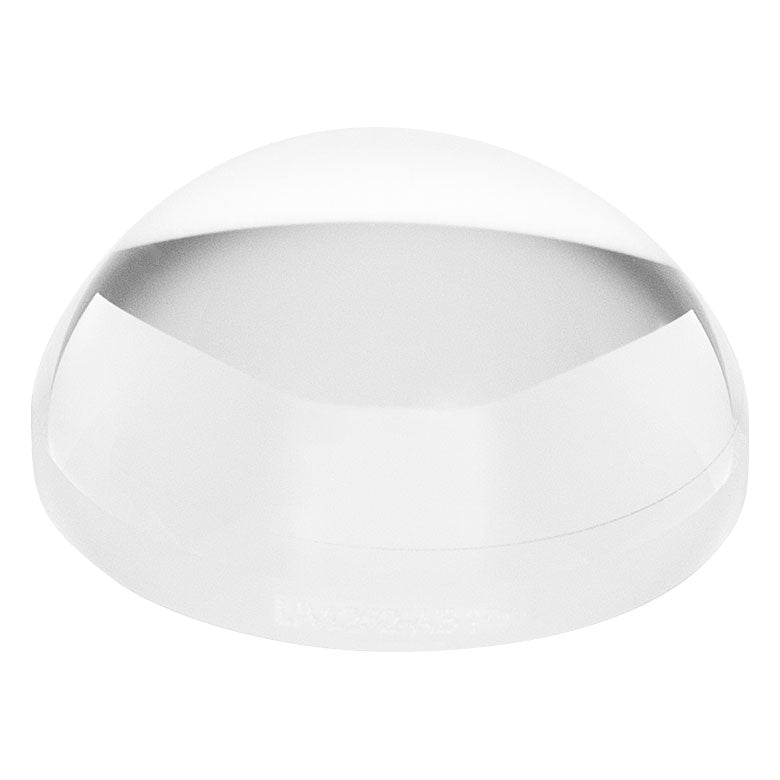

T-LA1252-AB - N-BK7 Plano-Convex Lens, Ø25 mm, f = 25 mm, AR Coating: 400 - 1100 nm
T-LA1252-AB - N-BK7 Plano-Convex Lens, Ø25 mm, f = 25 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 25.0 mm
- Focal Length (mm) 25.4
-
Diopter +39.4
- Radius of Curvature (mm) 13.1
- Center Thickness (mm) 11.7
- Edge Thickness (mm) 2.5
- Back Focal Length (mm) 17.7

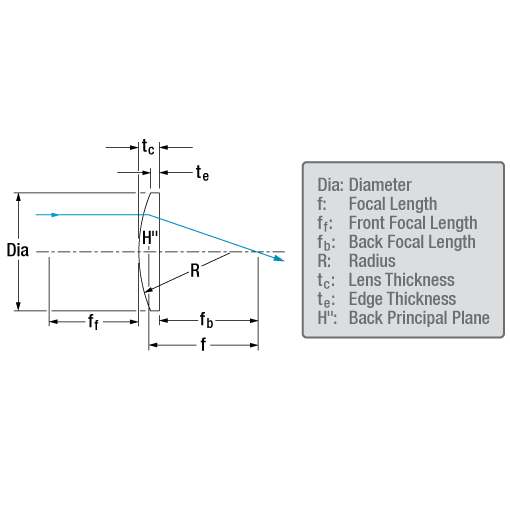

- Reference Drawing Click to check
