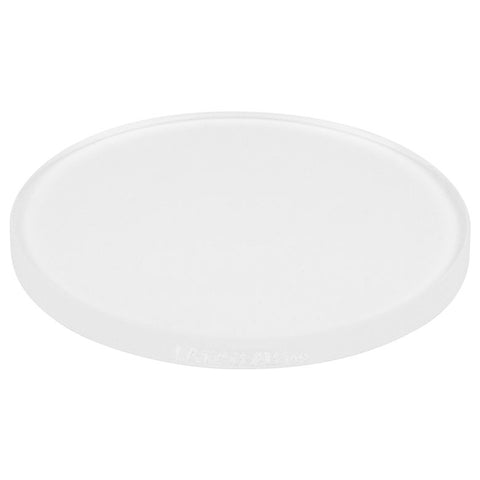

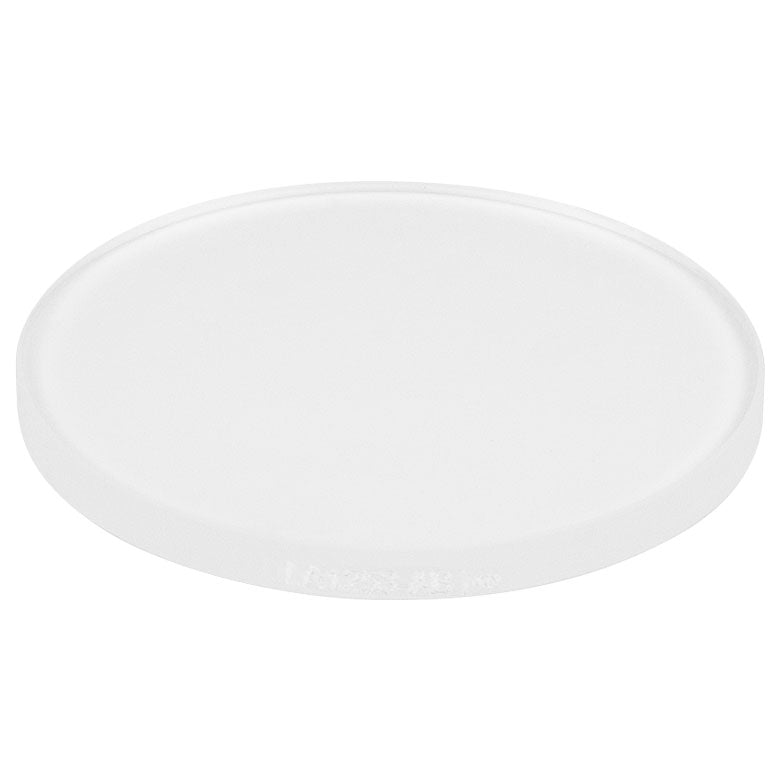

T-LA1253-AB - N-BK7 Plano-Convex Lens, Ø25 mm, f = 200 mm, AR Coating: 400 - 1100 nm
T-LA1253-AB - N-BK7 Plano-Convex Lens, Ø25 mm, f = 200 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 25.0 mm
- Focal Length (mm) 200
-
Diopter +5.0
- Radius of Curvature (mm) 103.0
- Center Thickness (mm) 2.8
- Edge Thickness (mm) 2.0
- Back Focal Length (mm) 198.1
- Reference Drawing Click to check
