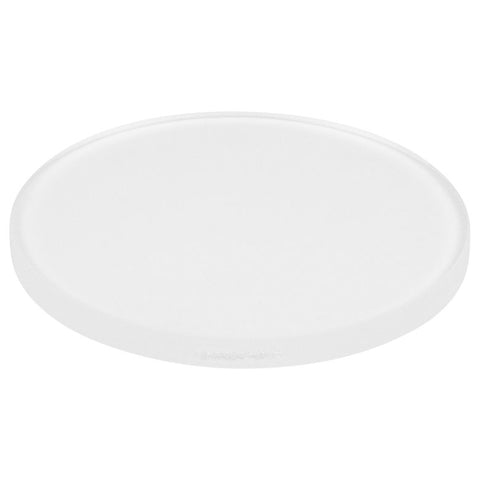

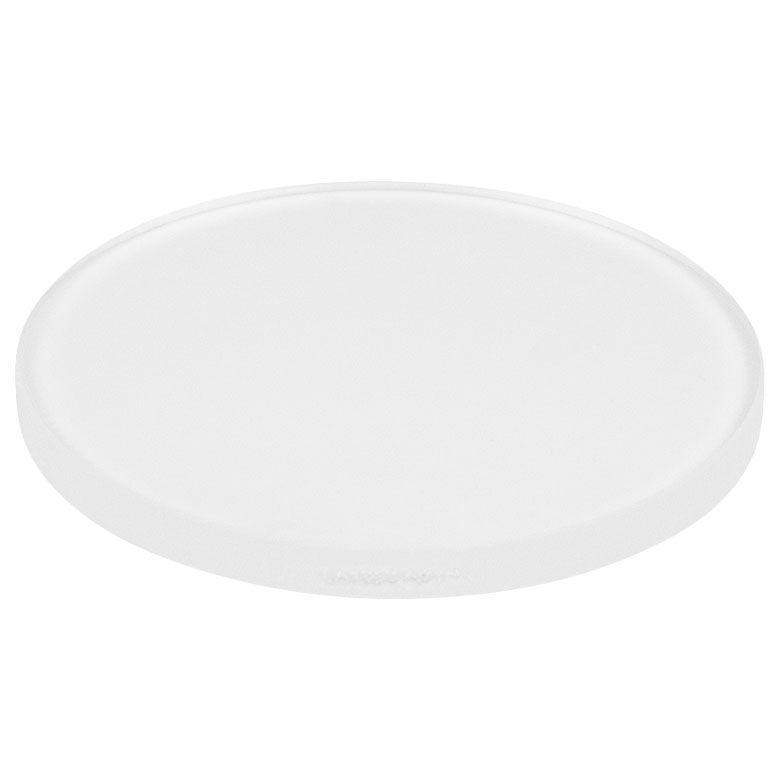

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: – Fosco Connect

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: 400 - 1100 nm

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: 400 - 1100 nm

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: 400 - 1100 nm

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: 400 - 1100 nm

Fosco Connect Part No.: T-LA1353-AB

$ 215.00 or

T-LA1353-AB - N-BK7 Plano-Convex Lens, Ø75 mm, f = 200 mm, AR Coating: 400 - 1100 nm

Product Drawing

Material: N-BK7
AR-Coated for the 400 - 1100 nm Range
Focal Lengths Available from 10 mm to 2500 mm
Diameter 75.0 mm
Focal Length (mm) 199.3
Diopter +5.0
Radius of Curvature (mm) 103.0
Center Thickness (mm) 10.1
Edge Thickness (mm) 3.0
Back Focal Length (mm) 192.7

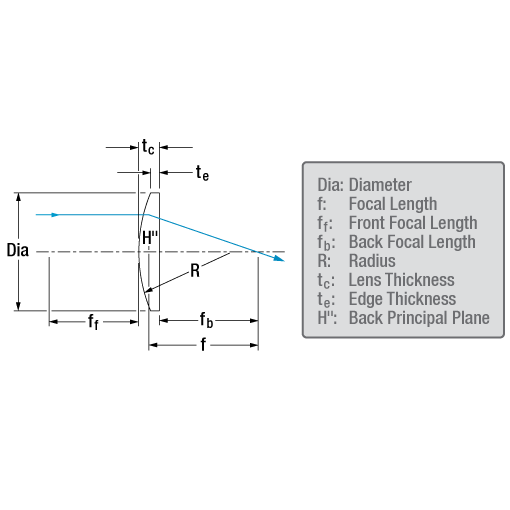

Reference Drawing
