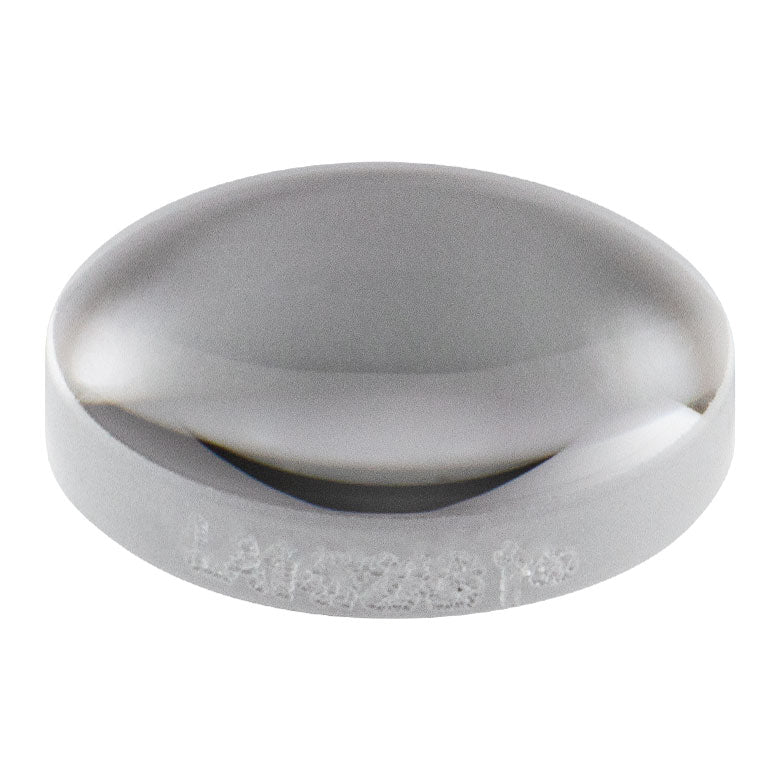

T-LA1472-AB - N-BK7 Plano-Convex Lens, Ø9 mm, f = 20 mm, AR Coating: 400 - 1100 nm
T-LA1472-AB - N-BK7 Plano-Convex Lens, Ø9 mm, f = 20 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 9.0 mm
- Focal Length (mm) 19.9
- Diopter +50.3
- Radius of Curvature (mm) 10.3
- Center Thickness (mm) 2.5
- Edge Thickness (mm) 1.5
- Back Focal Length (mm) 18.3
- Reference Drawing Click to Check
