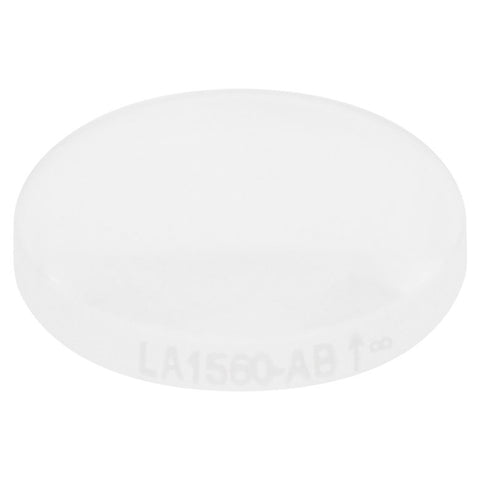

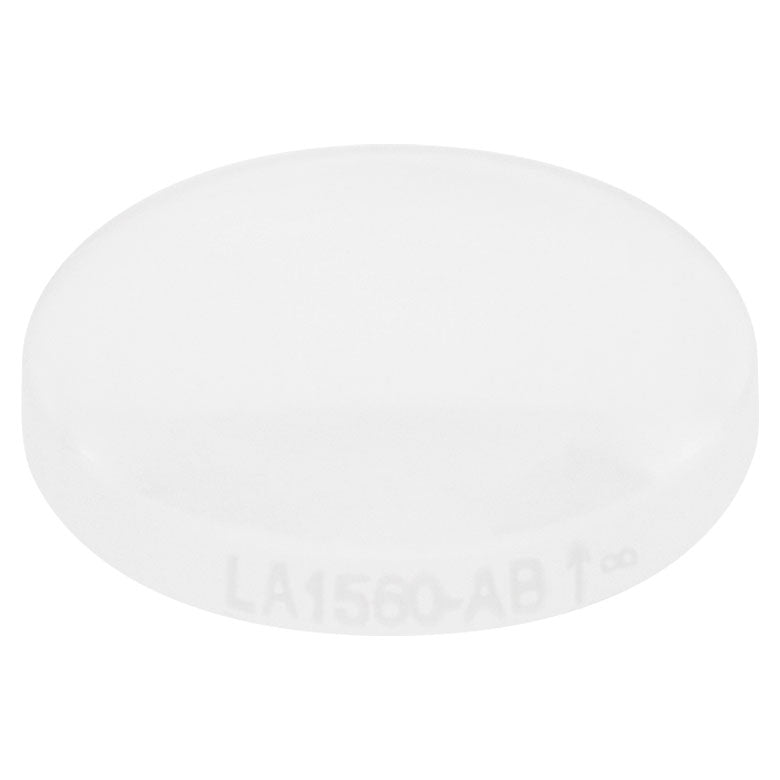

T-LA1560-AB - N-BK7 Plano-Convex Lens, Ø1/2", f = 25 mm, AR Coating: 400 - 1100 nm
T-LA1560-AB - N-BK7 Plano-Convex Lens, Ø1/2", f = 25 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 1/2"
- Focal Length (mm) 25.0
- Diopter +40.0
- Radius of Curvature (mm) 12.9
- Center Thickness (mm) 3.5
- Edge Thickness (mm) 1.8
- Back Focal Length (mm) 12.60
- Reference Drawing Click to Check
