Fosco Connect Part No.: T-LA1859-AB

$ 68.00 or

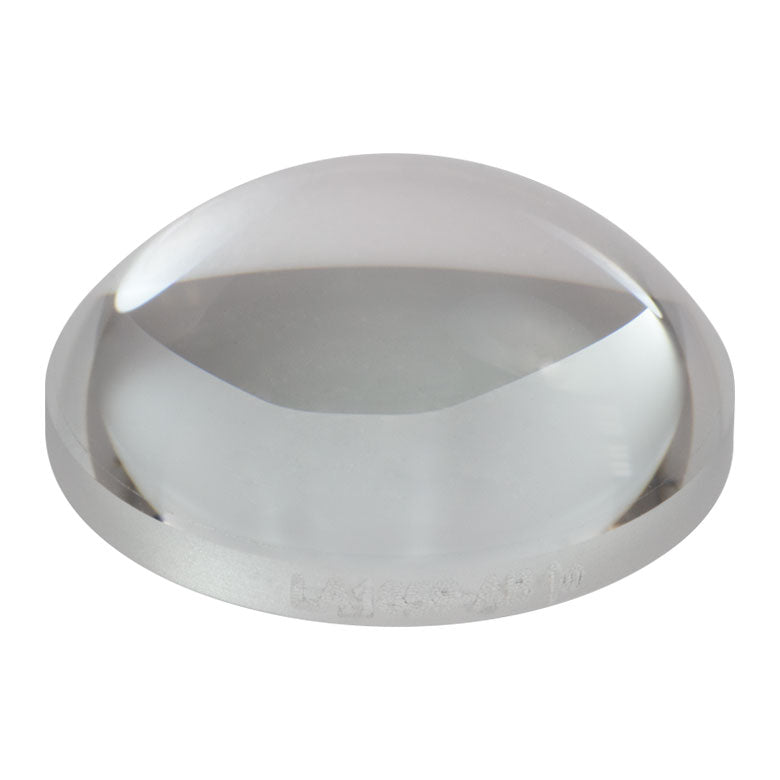

T-LA1859-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 20 mm, AR Coating: 400 - 1100 nm

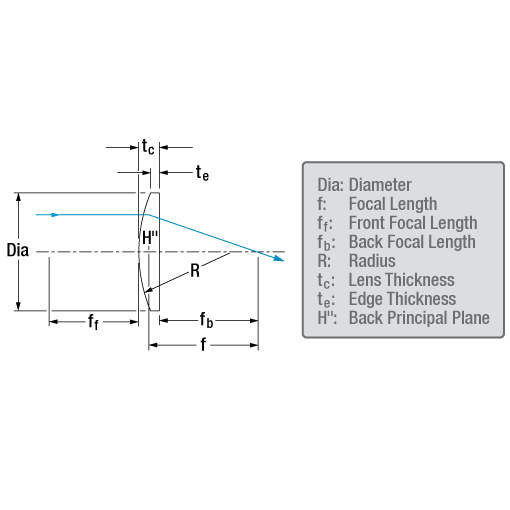

Product Drawing

Material: N-BK7
AR-Coated for the 400 - 1100 nm Range
Focal Lengths Available from 10 mm to 2500 mm
Diameter 18.0 mm
Focal Length (mm) 19.9
Diopter +50.3
Radius of Curvature (mm) 10.3
Center Thickness (mm) 7.1
Edge Thickness (mm) 1.8
Back Focal Length (mm) 15.30
Reference Drawing Click to Check
