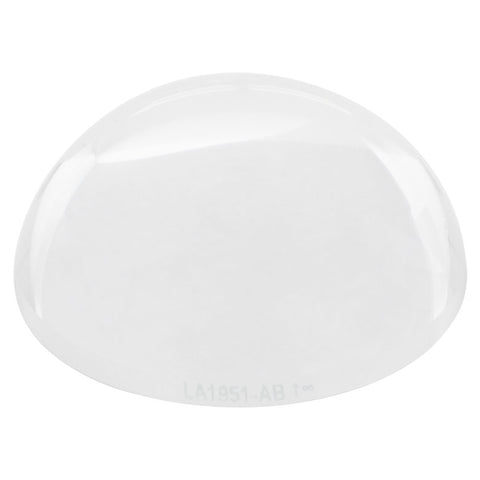

T-LA1951-AB - N-BK7 Plano-Convex Lens, Ø1", f = 25.4 mm, AR Coating: 400 - 1100 nm
T-LA1951-AB - N-BK7 Plano-Convex Lens, Ø1", f = 25.4 mm, AR Coating: 400 - 1100 nm
- Material: N-BK7
- AR-Coated for the 400 - 1100 nm Range
- Focal Lengths Available from 10 mm to 2500 mm
- Diameter 1"
- Focal Length 25.4 mm
- Diopter +39.4
- Radius of Curvature (mm) 13.1
- Center Thickness (mm) 11.7
- Edge Thickness (mm) 1.8
- Back Focal Length (mm) 17.6

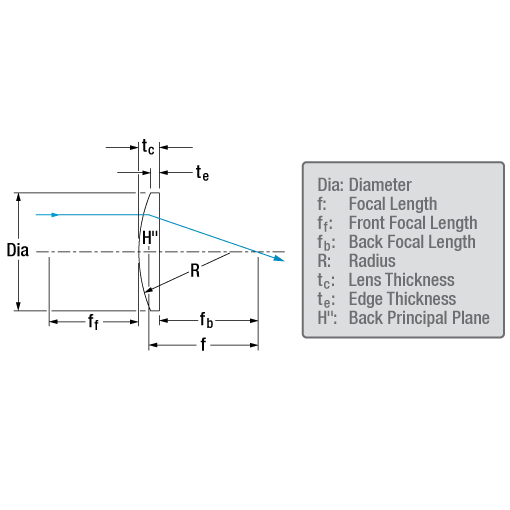

- Product Reference Drawing
| Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -AB | 7.5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.456 mm) 7.5 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.407 mm) |
