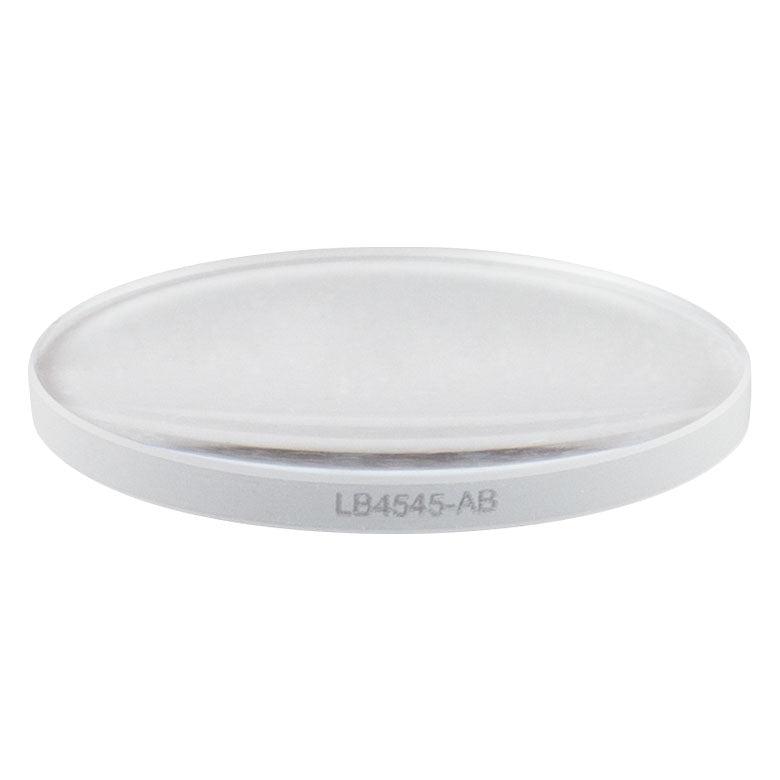

T-LB4545-AB - f = 300 mm, Ø1" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm
T-LB4545-AB - f = 300 mm, Ø1" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm
Features
- 5 Different Diameters Available: Ø5 mm, Ø6 mm, Ø1/2", Ø1", and Ø2"
- AR-Coating for the 400 - 1100 nm Range
- Fabricated from UV Grade Fused Silica
- Focal Lengths Available from 10.0 - 1003.5 mm
- Diameter 1"
- Focal Length 301.1 mm
- Diopter +3.3
- Radius of Curvature 275.6 mm
- Center Thickness 2.6 mm
- Edge Thickness 2.0 mm
- Back Focal Length 300.2 mm
- Reference Drawing
