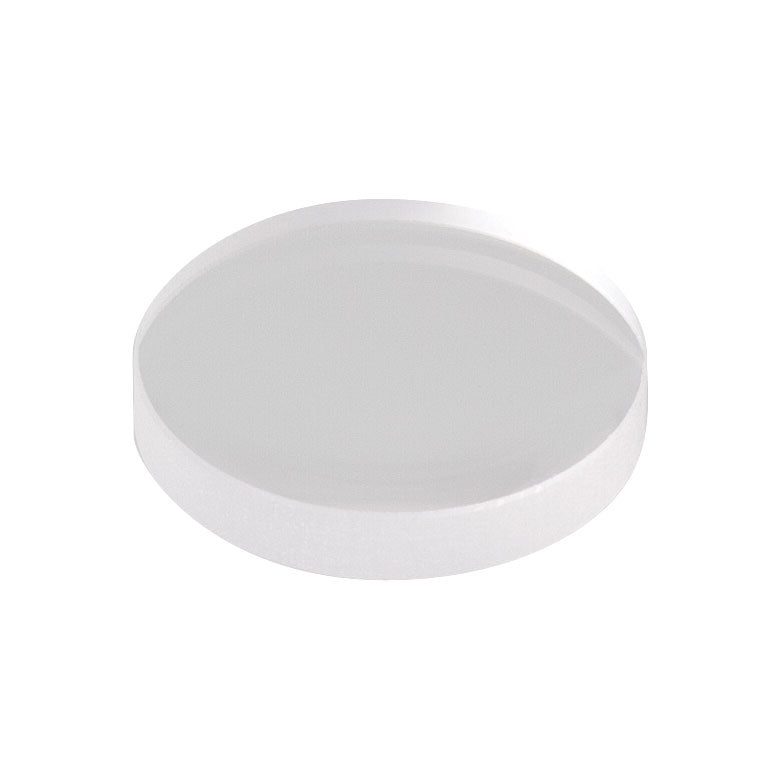

T-LB5864 - Ø1/2" CaF2 Bi-Convex Lens, f = 40.0 mm, Uncoated
T-LB5864 - Ø1/2" CaF2 Bi-Convex Lens, f = 40.0 mm, Uncoated
Features
- Vacuum-Grade Calcium Fluoride Substrate
- Ø1/2" and Ø1" Versions Available
- Uncoated for use in the 0.18 - 8.0 μm
- Focal Lengths from 15.0 mm to 200.0 mm
- Diameter 1/2" (12.7 mm)
- Focal Length 40.0 mm
- Diopter +25.0
- Radius of Curvature 34.2 mm
- Center Thickness 3.2 mm
- Edge Thickness 2.0 mm
- Back Focal Length 38.9 mm

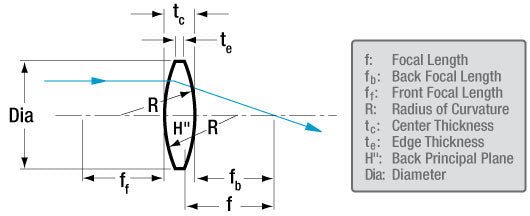

- Reference Drawing
