T-LFM100 - Multimode Lensed GIF50E Fiber, Scissor Cut, 1 m
T-LFM100 - Multimode Lensed GIF50E Fiber, Scissor Cut, 1 m

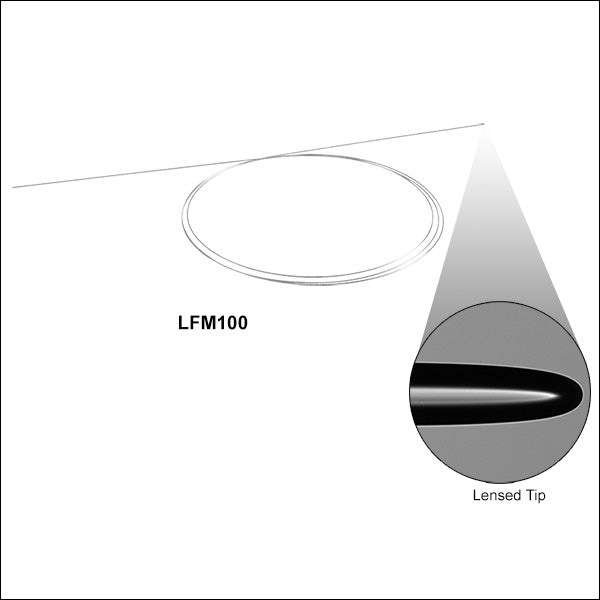

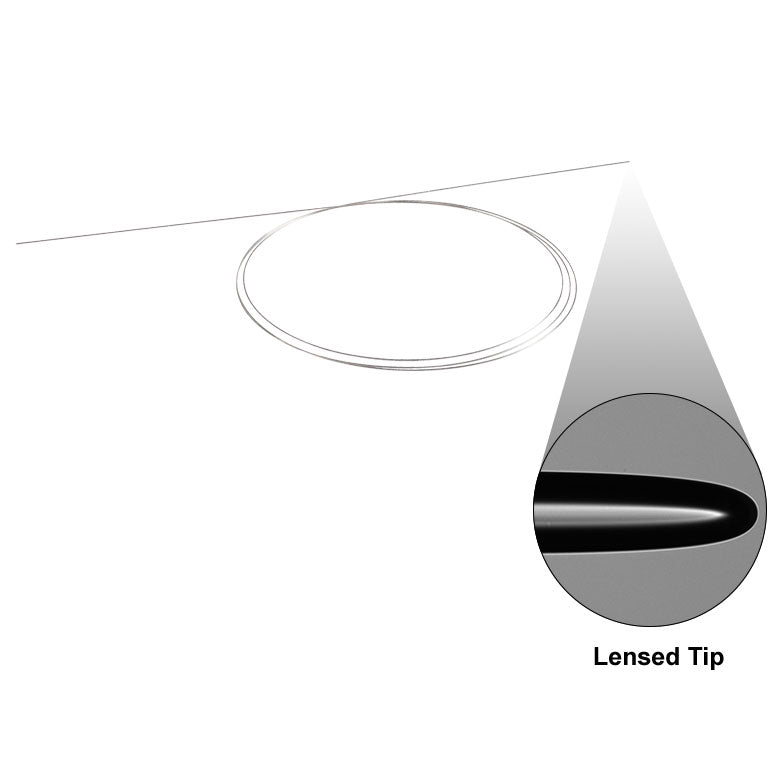

- 1 m of GIF50E Fiber with Lensed Tip
- 11 ± 1 mm of Fiber, Stripped to Cladding, on End with Lensed Tip
- Other End is Scissor Cut
LFM100 Multimode Lensed-Tip Fiber is available from stock in 1 m lengths.
The non-lensed, scissor-cut end can be spliced into a setup if desired, or terminated with a connector using fiber termination kits.
- GIF50E Graded-Index Multimode Fiber with Lensed Tip

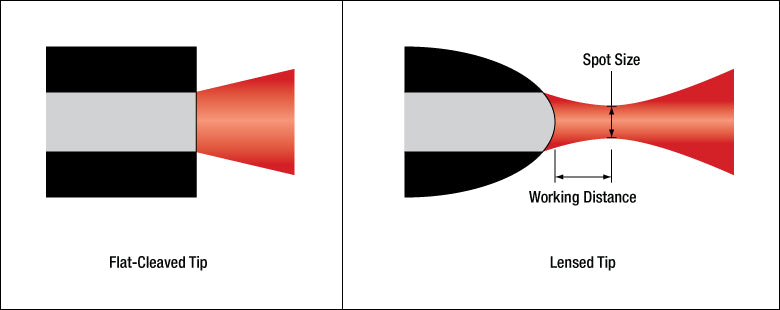

- Focus Light to Ø25 µm Spot at 30 µm Working Distance
- Available as Bare Fiber or Patch Cable
- Patch Cables are FC/PC (2.0 mm Narrow Key) or SMA905 Terminated on One End
- Useful for Waveguide and Photodiode Coupling Applications
- Manufactured Using Vytran® Fiber Processing Technology
| Lensed Tip Specifications | ||
|---|---|---|
| Focused Spot Size | Ø25 µm (Typ.) | |
| Working Distance | 30 µm (Typ.) | |
| Taper Length | 410 µm | |
| Radius of Curvature | 31 ± 1 µm | |
| Insertion Loss | 0.2 dB (Typ.) | |
| Physical Specifications | |||
|---|---|---|---|
| Item # | LFM100 | LFM1F-1 | LFM1S-1 |
| Fiber Termination | Scissor Cut | FC/PC, 2.0 mm Narrow Key |
SMA905 |
| Fiber Length | 1 m +0.10 m/-0.0 m | ||
| Stripped Fiber Length | 11 mm ± 1 mm | ||
| Tubing | N/A | Ø900 µm Black Hytrel®b | |
| Length without Tubing | N/A | 5 ± 1 cm | |
| Operating Temperature | -60 to 85 °C | ||
| Fiber Specifications | ||
|---|---|---|
| Fiber | ||
| Fiber Type | GIF50E | |
| Wavelength Range | 800 - 1600 nm | |
| Numerical Aperture | 0.200 ± 0.015 | |
| Core Diameter | 50.0 ± 2.5 µm | |
| Cladding Diameter | 125 ± 1 µm | |
| Coating Diameter | 242 ± 5 µm | |
| Core-Cladding Concentricity | ≤1.5 µm | |
| Coating-Cladding Concentricity | ≤12 µm | |
| Attenuation | ≤2.3 dB/km @ 850 nm ≤0.6 dB/km @1300 nm |
|
| Key Specifications | ||
|---|---|---|
| Fiber Type | GIF50E | |
| Wavelength Range | 800 - 1600 nm | |
| Focused Spot Size | Ø25 µm (Typ.) | |
| Working Distance | 30 µm (Typ.) | |
| GIF50E Fiber Specifications | ||
| Numerical Aperture | 0.200 ± 0.015 | |
| Core Diameter | 50.0 ± 2.5 µm | |
| Cladding Diameter | 125 ± 1 µm | |
| Coating Diameter | 242 ± 5 µm | |
