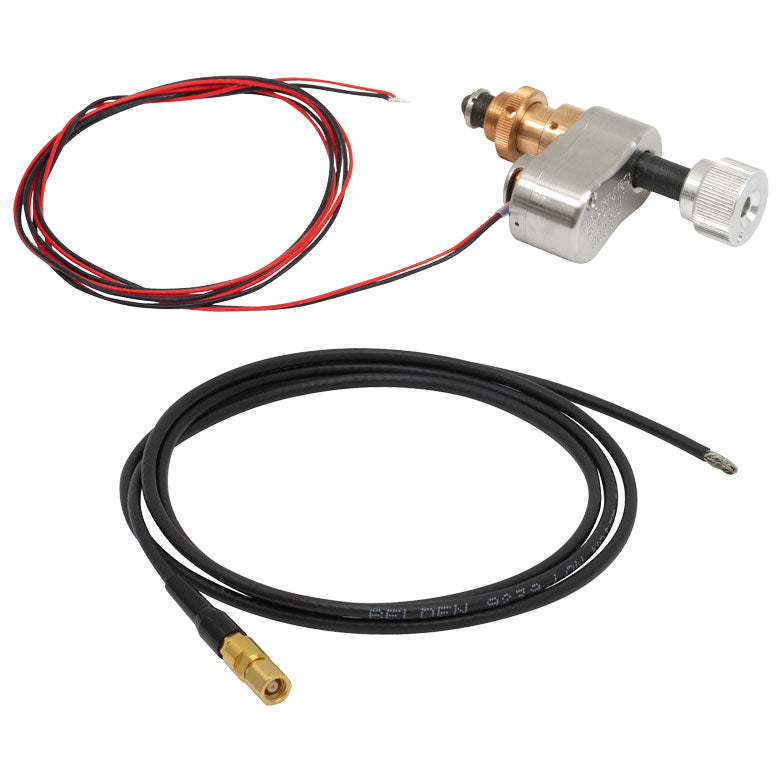

T-PIA13VF - Vacuum-Compatible Piezo Inertia Actuator, 13 mm Travel, Ø3/8" Mounting Barrel
T-PIA13VF - Vacuum-Compatible Piezo Inertia Actuator, 13 mm Travel, Ø3/8" Mounting Barrel
- T-PIA13VF: Ø3/8" (Ø9.525 mm) Barrel for Mounting to Manual Stages with Ø3/8" (Ø9.525 mm) Mounting Clamps
| Item # | T-PIA13VF |
|---|---|
| Travel | 13 mm (0.51") |
| Typical Step Size | 20 nm |
| Maximum Step Size | 30 nm |
| Step Size Adjustability | ≤30% |
| Maximum Step Frequency | 2000 Hz |
| Backlash | None |
| Maximum Active Preload | 25 N |
| Typical Angular Resolution | N/A |
| Recommended Maximum Active Axial Load Capacity |
2.5 kg (5.51 lbs) |
| Speed (Continuous Stepping) | 2 mm/minute (Typical) <3.5 mm/minute (Maximum) |
| Drive Screw | 1/4"-80 Thread, Hard PVD Coated |
| Actuator Tip | Tungsten-Carbide-Coated Ball |
| Lifetime | >1,000,000,000 Steps |
| Motor Type | Piezoelectric Inertia |
| Piezo Specifications | |
| Max Operating Voltage | 125 V |
| Capacitance | 175 nF |
| Resonant Frequency | 125 kHz (No Load) |
| Physical Specifications | |
| Dimensionsg (L x W x H) | 59.4 mm x 31.5 mm x 17.0 mm (2.34" x 1.24" x 0.67") |
|
Mounting Feature (Auxiliary) |
Ø3/8" (Ø9.525 mm) Barrel (3/8"-40 Thread with Lock Nut) |
| Vacuum Rating | 10-6 Torr |
| Operating Temperature | 5 to 130 °C (41 to 266 °F) |
| Cable Length | 0.75 m (2.48 ft) Flying Lead for Vacuum, 1.0 m (3.3 ft) of Cored Cable for Wiring Outside Chamber |
| Connector Type | SMC Female |
| Cable Exit Adjustability | ±55° for Left- or Right-Hand Exit |
