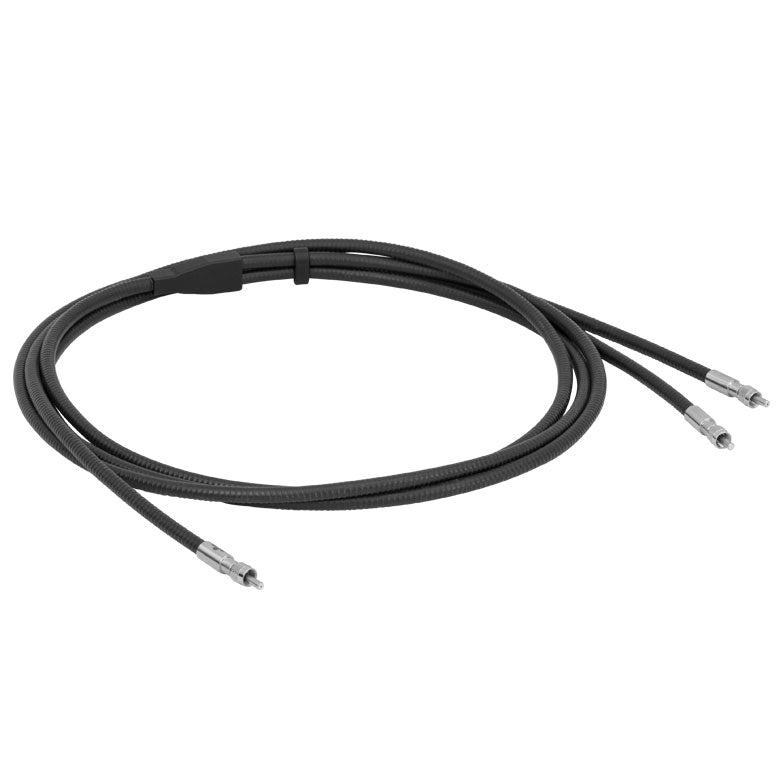

T-RP21 - Reflection Probe with Round Leg, Ø200 µm, Low-OH (400 - 2400 nm), SMA Connectors, 2 m Long
T-RP21 - Reflection Probe with Round Leg, Ø200 µm, Low-OH (400 - 2400 nm), SMA Connectors, 2 m Long
- Fiber Optic Y-Cables for Reflection and Fluorescence Spectroscopy
- Three Wavelength Ranges Available
- 250 - 1200 nm
- 400 - 2400 nm
- 285 - 4500 nm
- Sample Leg Available with SMA905 Connector or Ø1/4" Probe

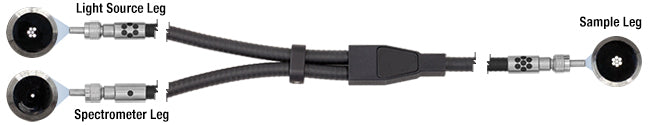

- Light Source End Illuminates Sample End for Sample Viewing
- Spectrometer End Carries Reflected Light from Sample
- Reinforced Stainless Steel Tubing and Steel Strain Relief Sleeves for Durability
- Y-Joint with Adjustable Fiber Clamp
- Hydroxyl Content Low OH
- Wavelength Range 400 - 2400 nm
- Fiber Item # FG200LEA
- Jacket Item # FT061PS
- Light Source Leg SMA Connector, Round
- Sample Leg SMA Connector
- Spectrometer Leg SMA Connector, Single Fiber
- Fiber Core Diameter 200 ± 4 µm
- Fiber Cladding Diameter 220 ± 2 µm
- NA 0.22 ± 0.02
- Min Bend Radius Short Term 23 mm, Long Term 46 mm
- Fiber Attenuation Plot
