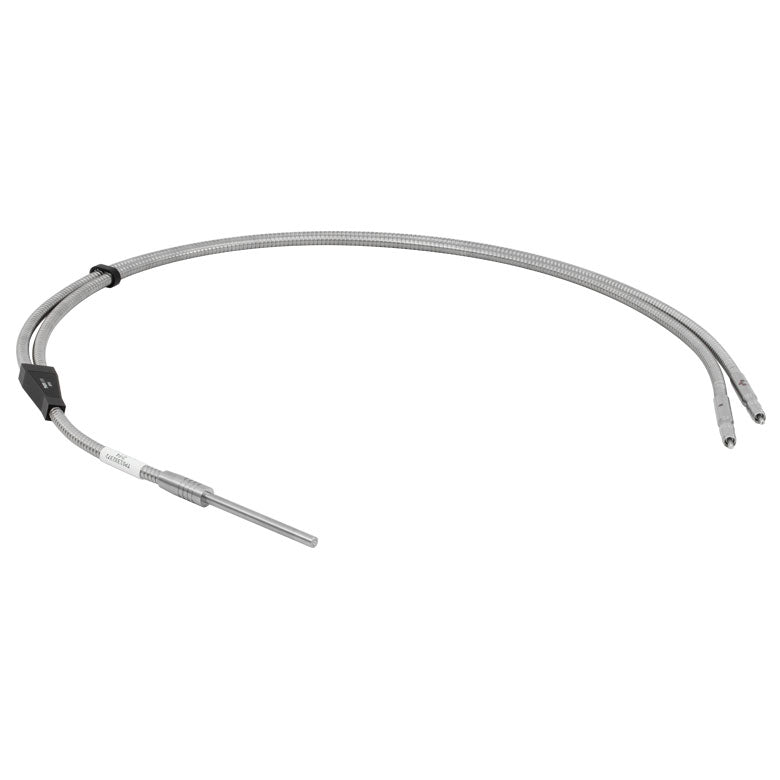

T-RP31 - MIR Reflection Probe with Round Leg, Ø200 µm, ZBLAN (285 - 4500 nm), SMA to Ø1/4" Probe, 1 m Long
T-RP31 - MIR Reflection Probe with Round Leg, Ø200 µm, ZBLAN (285 - 4500 nm), SMA to Ø1/4" Probe, 1 m Long
Wavelength Range 285 - 4500 nm
Fiber Item # ZBLAN Multimode
Jacket Item # FT080SS
Light Source Leg SMA Connector, Round Bundle
Sample Leg Ø1/4" Probe
Spectrometer Leg SMA Connector, Single Fiber
Fiber Core Diameter 200 ± 10 µm
Fiber Cladding Diameter 290 ± 10 µm
NA 0.20 ± 0.02 @ 2 µm
Min Bend Radius Short, Long Term 140 mm ± 30 mm

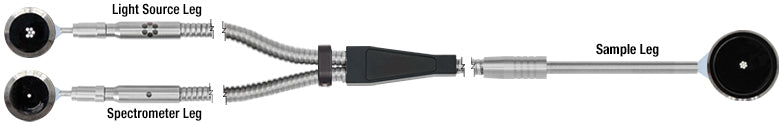

| Light Source Leg | SMA Connector 6 Illumination Fibers, Round Configuration |
|
| Fiber Configuration, Terminator Side View |
 |
|
| Sample Leg | Ø1/4" Probe 7 Fibers, Round Configuration, Read Fiber in Center |
|
| Fiber Configuration, Terminator Side View (Click for Details) |
 |
|
| Spectrometer Leg | SMA Connector 1 Read Fiber |
| Fiber Configuration, Terminator Side View |
 |
| Wavelength Range | 285 - 4500 nm |
| Fiber Type | ZBLAN Multimode |
| Hydroxyl Ion Content | - |
| Fiber Core Size | Ø200 ± 10 µm |
| Fiber Cladding Diameter |
290 ± 10 µm |
| Fiber NAe | 0.20 ± 0.02 @ 2.0 µm |
| Fiber Attenuation Plot |
Click to see |
| Minimum Bend Radius | 140 mm ± 30 mm |
| Length | 1 +0.2/-0.0 m |
