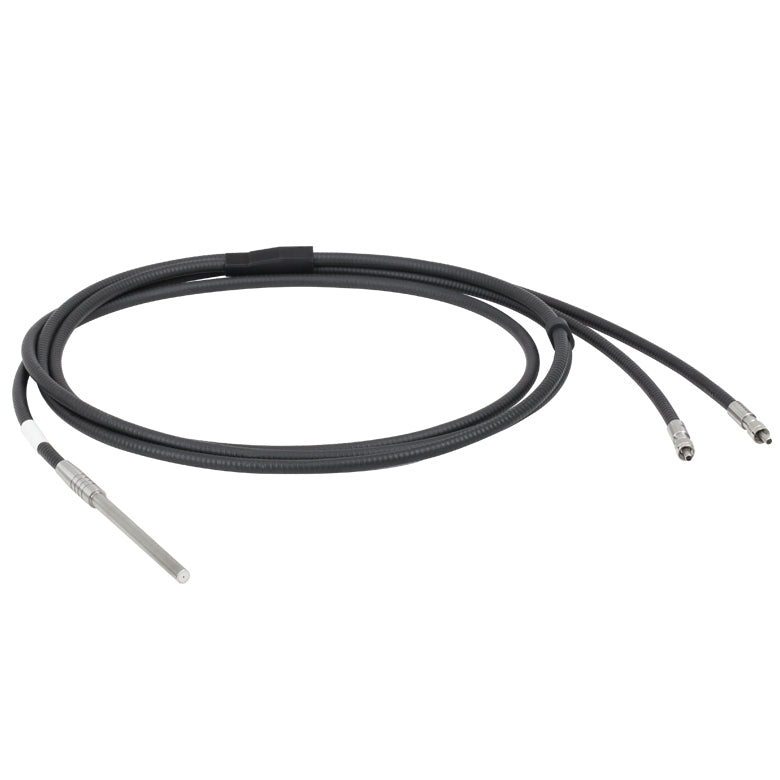

T-RP25 - Reflection Probe with Linear Leg, Ø200 µm, Low-OH (400 - 2400 nm), SMA to Ø1/4" Probe, 2 m Long
T-RP25 - Reflection Probe with Linear Leg, Ø200 µm, Low-OH (400 - 2400 nm), SMA to Ø1/4" Probe, 2 m Long
The T-RP24 and T-RP25 reflection probes feature a spectrometer leg with a linear bundle configuration for improved coupling efficiency with our compact spectrometers. The linear bundle end matches the shape of the entrance slit better than a single fiber or round bundle configuration, increasing the amount of light entering the device . This is ideal for samples that are sensitive to light exposure or heating caused by absorption. The light source end consists of a single fiber; this can be useful when a sample's exposure to light needs to be minimized.
Hydroxyl Content Low OH
Wavelength Range 400 - 2400 nm
Fiber Item # FG200LEA
Light Source Leg SMA Connector, Single Fiber
Sample Leg Ø1/4" Probe
Spectrometer Leg SMA Connector, Linear Bundle
Fiber Core Diameter 200 ± 4 µm
Fiber Cladding Diameter 220 ± 2 µm
NA 0.22 ± 0.02
Minimum Bend Radius Short Term 23 mm, Long Term 46 mm
