T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm
T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm
- 30.0 mm Outer Diameter
- Excellent Suppression in Rejection Region (ODavg > 6)

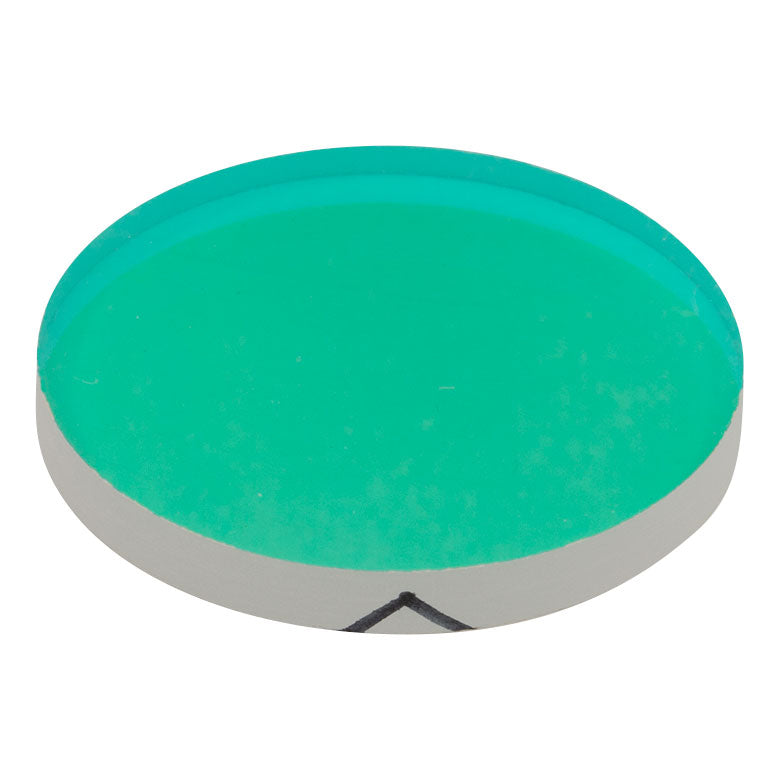

- Recommended Transmission Direction Indicated by Caret on Edge
| Item # | TF1 |
|---|---|

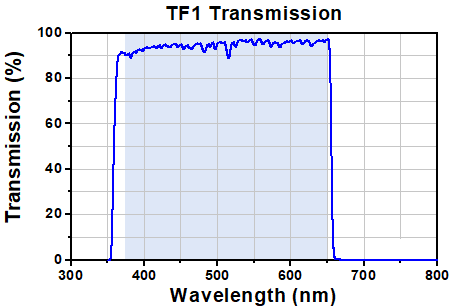

| Transmission Region | Tavg > 90% from 375 to 650 nm |

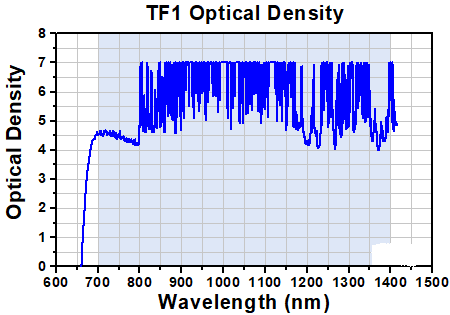

| Rejection Region | ODavg > 6 from 700 to 1400 nm |
| Graphs (Click for Details) |  |
| Coating | Immersed Dielectric |
| Surface Quality | 80-50 Scratch-Dig |
| Substrate Material | Borofloat® |
| Diameter | 30.0 mm (1.18") |
| Diameter Tolerance | ±0.1 mm |
| Clear Aperture | Ø27 mm |
| Thickness | 3.3 mm (0.13") |
