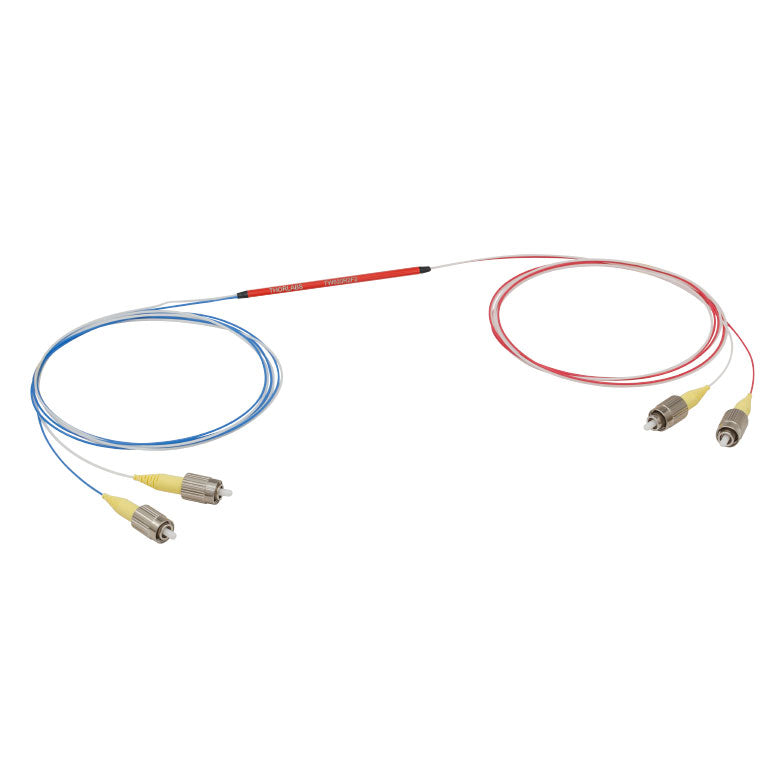

T-TW630R2F2 - 2x2 Wideband Fiber Optic Coupler, 630 ± 50 nm, 90:10 Split, FC/PC Connectors
T-TW630R2F2 - 2x2 Wideband Fiber Optic Coupler, 630 ± 50 nm, 90:10 Split, FC/PC Connectors
| Coupler Specifications | |
|---|---|

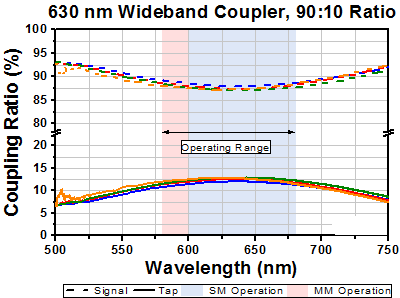

| Coupling Ratio | 90:10 |
| Coupling Ratio Tolerance | ±3.0% |
| Center Wavelength | 630 nm |
| Minimum Bandwidth | ±50 nm |
| Insertion Loss |
≤1.0 dB / ≤11.9 dB |
| Excess Loss |
<0.3 dB (Typ.) |

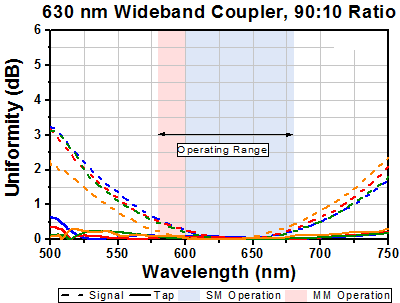

| Uniformity | ≤1.0 dB |
| Polarization-Dependent Loss (PDL) | ≤0.2 dB |
| Optical Return Loss (ORL) / Directivity |
≥60 dB |
| Max Power Level | 300 mW (With Connectors or Bare Fiber) 500 mW (Spliced) |
| Fiber Type | 630HP |
| Fiber Cut-Off Wavelength | 570 ± 30 nm |
| Port Configuration | 2x2 |
| Fiber Lead Length and Tolerance | 0.8 m +0.075 m / -0.0 m |
| Connectors | 2.0 mm Narrow Key FC/PC |
| Package Size | Ø0.12" x 2.76" (Ø3.2 mm x 70 mm) |
| Jacket | Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load | 10 N |
| Operating Temperature | -40 to 85 °C |
| Storage Temperature | -40 to 85 °C |
