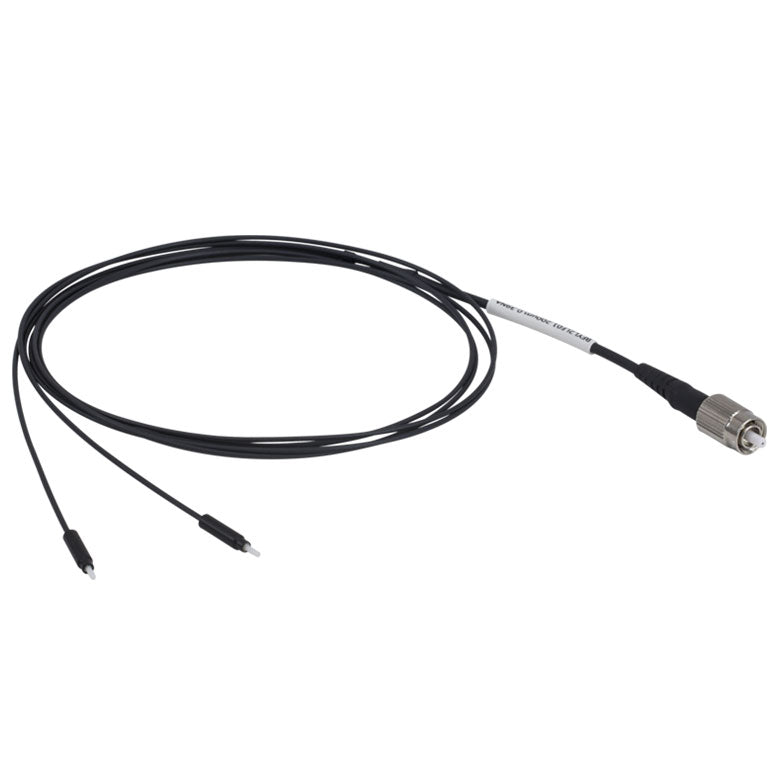

TH-BFYF1LF01 - Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, FC/PC to Ø2.5 mm Ferrules, 1 m Long
TH-BFYF1LF01 - Bifurcated Fiber Bundle, Ø200 µm Core, 0.22 NA, FC/PC to Ø2.5 mm Ferrules, 1 m Long
Ferrule Size Ø2.5 mm
Common Connector SMA905
Fiber Type 0.22 NA, Ø200 µm Core Multimode Optical Fiber, High-OH for 250 - 1200 nm, TECS Double Clad
Wavelength Range 250-1200 nm
Core Diameter 200 ± 8 µm
Cladding Diameter 240 ± 5 µm
NA 0.22 ± 0.02
Compatible Cannulae Ceramic and Stainless Steel
