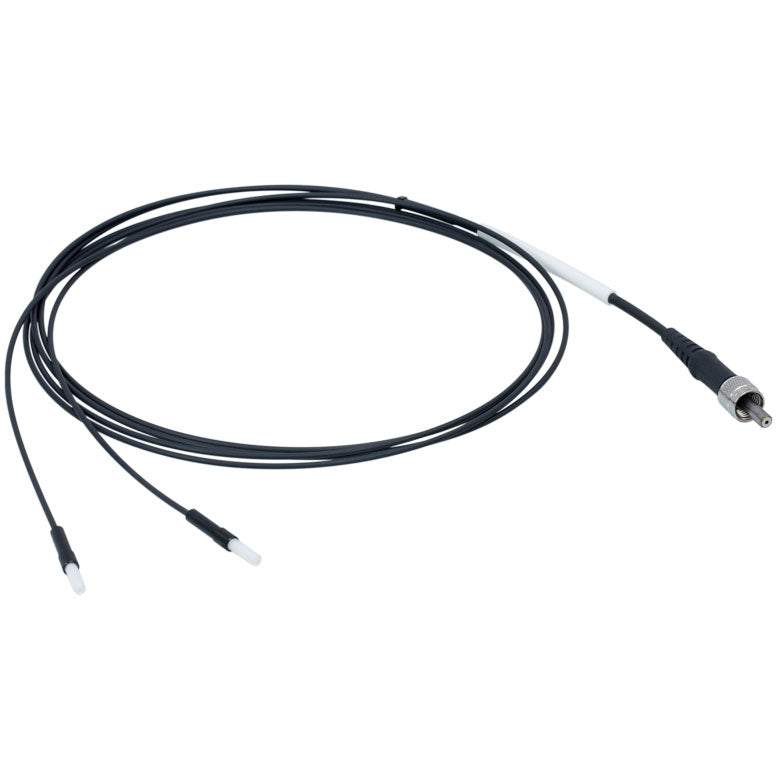

TH-BFYF4LS01 - Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrules, 1 m Long
TH-BFYF4LS01 - Bifurcated Fiber Bundle, Ø400 µm Core, 0.39 NA, SMA905 to Ø2.5 mm Ferrules, 1 m Long
Ferrule Size Ø2.5 mm
Common Connector SMA905

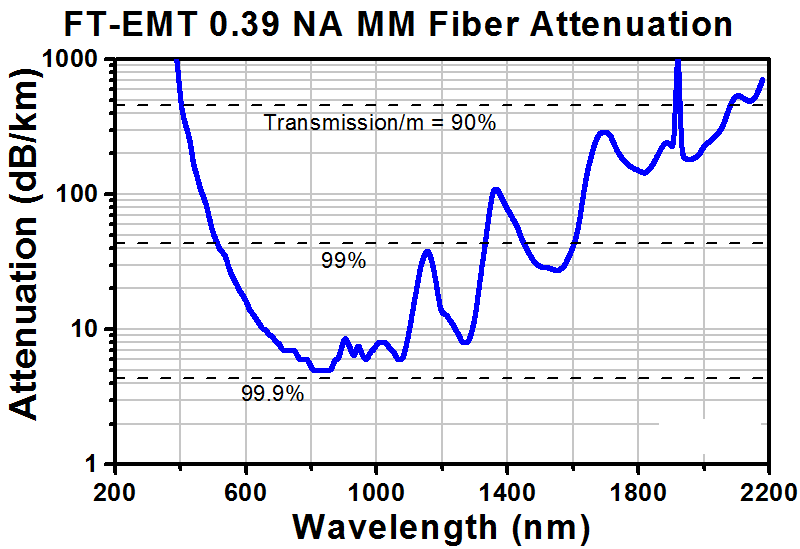

Fiber Type 0.39 NA, Ø400 µm Core Multimode Optical Fiber, Low OH for 400 - 2200 nm, TECS Clad
Wavelength Range 400-2200 nm
Core Diameter 400 ± 8 µm
Cladding Diameter 425 ± 10 µm
NA 0.39
Compatible Cannulae Ceramic and Stainless Steel
