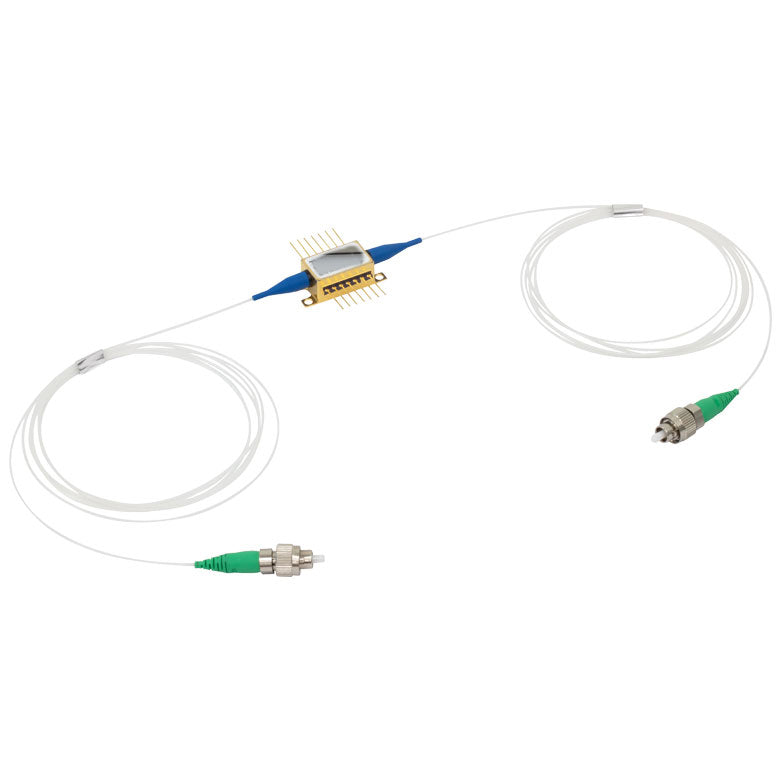

TH-BOA1004PXS - 1550 nm Polarization-Dependent Optical Shutter/Switch, ≤18 dBm (Typ.) Output Power, Butterfly Pkg., PM, FC/APC
TH-BOA1004PXS - 1550 nm Polarization-Dependent Optical Shutter/Switch, ≤18 dBm (Typ.) Output Power, Butterfly Pkg., PM, FC/APC
- High Extinction Ratio of 70 dB (Typ.)
- 1.5 m PM Fiber Pigtails with FC/APC Connectors with Key Aligned to Slow Axis
- Typical Applications: Cavity Ring-Down Sensors and LIDAR Systems
Operating Wavelength 1500 - 1600 nm
ASE Center Wavelength -
Optical Isolation (PIN / POUT) @ 0 mAb ≥40 dB
Extinction Ratio @ PIN = -20 dBmb 70 dB
Switching Speed 1 ns
Max Output Power for CW Input Signal 18 dBm
Max Output Power for Modulated Input Signal 10 dBm
Small Signal Gain @ PIN = -20 dBm 25 dBe
