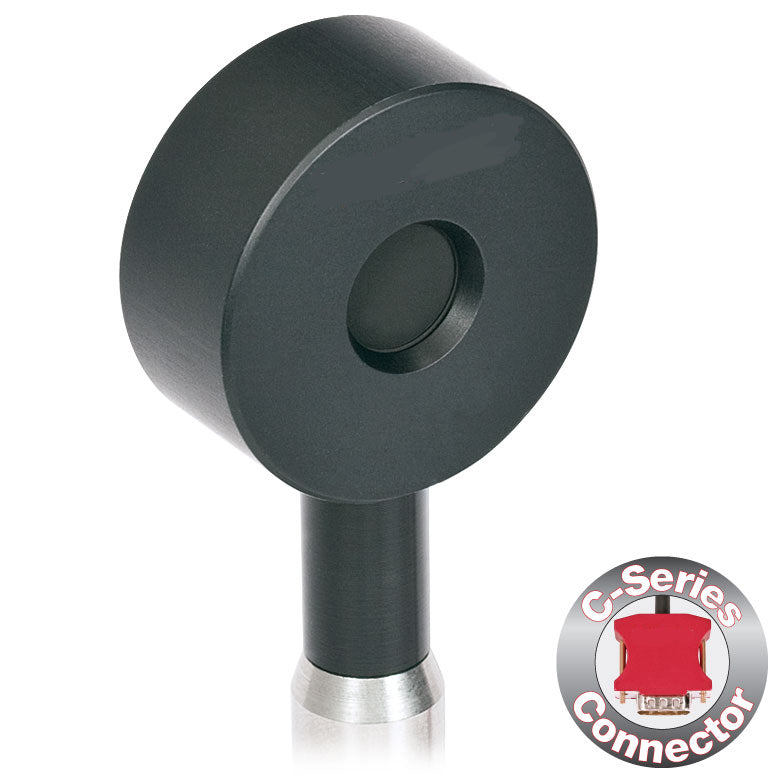

TH-ES111C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 150 mJ, Ø11 mm, 40 Hz
TH-ES111C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 150 mJ, Ø11 mm, 40 Hz
| Detector Type | Standard Pyroelectric Energy Sensor |
| Wavelength Range | 185 nm - 25 µm |
| Optical Energy Range | 10 µJ - 150 mJ |
| Max Repetition Rate (@ 1 MΩ Load) |
40 Hz |
| Max Power Density (Pulse Width) |
8 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
0.15 J/cm2 (1 µs Pulse) |
| Max Average Power | 0.15 W |
| Resolution | 100 nJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 190 nm - 25 µm |
| Thermal Time Constant | 20 ms |
| Resolution | 100 nJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 190 nm - 25 µm |
| Housing Dimensions | Ø36 mm x 16 mm |
| Active Detector Area | 95.0 mm2 |
| Cable Length | 1.5 m (60") |
| Post Mounting | 8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting | N/A |
| Input Aperture Size | Ø11 mm |
| Wavelength Range | 0.185 - 25 µm |
| Energy Range | 10 µJ - 150 mJ |
| Max Repetition Rateb | 40 Hz |
| Max Power Density (Pulse Width) |
8 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
0.15 J/cm2 (1 µs Pulse) |
