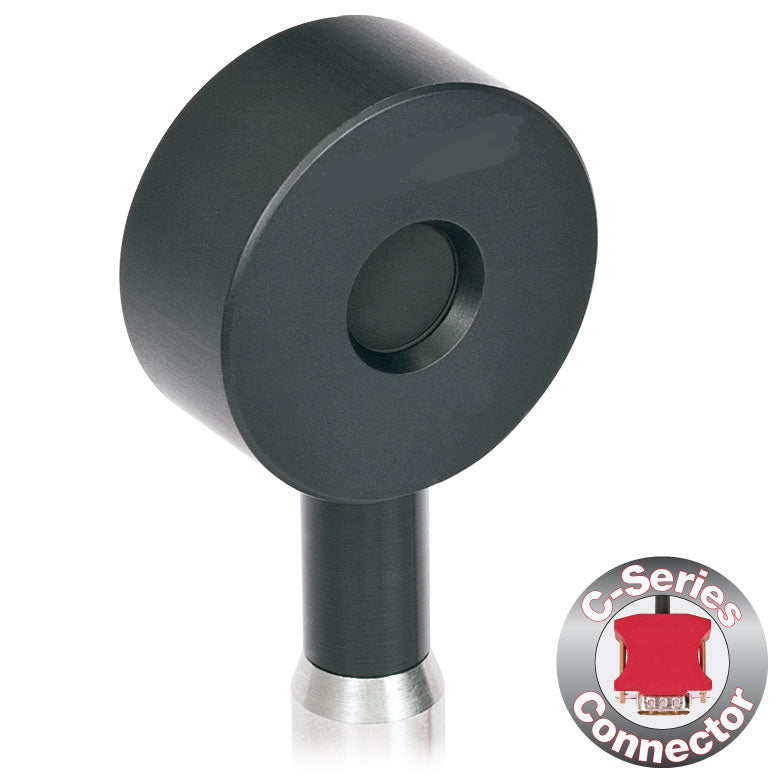

TH-ES120C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 500 mJ, Ø20 mm, 30 Hz
TH-ES120C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 500 mJ, Ø20 mm, 30 Hz
| Detector Type | Standard Pyroelectric Energy Sensor |
| Wavelength Range | 185 nm - 25 µm |
| Optical Energy Range | 100 µJ - 500 mJ |
| Max Repetition Rate (@ 1 MΩ Load) |
30 Hz |
| Max Power Density (Pulse Width) |
8 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
0.15 J/cm2 (1 µs Pulse) |
| Max Average Power | 0.15 W |
| Resolution | 1 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 185 nm - 25 µm |
| Thermal Time Constant | 20 ms |
| Resolution | 1 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 185 nm - 25 µm |
| Housing Dimensions | Ø50 mm x 18 mm |
| Active Detector Area | 314.2 mm2 |
| Cable Length | 1.5 m (60") |
| Post Mounting | 8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting | Four 4-40 Threaded Holes for 30 mm Cage Systems |
| Input Aperture Size | Ø20 mm |
| Wavelength Range | 0.185 - 25 µm |
| Energy Range | 100 µJ - 500 mJ |
| Max Repetition Rateb | 30 Hz |
| Max Power Density (Pulse Width) |
8 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
0.15 J/cm2 (1 µs Pulse) |
