TH-GPXL1 - Mountable Gooseneck Light for GPX Glass Processors
TH-GPXL1 - Mountable Gooseneck Light for GPX Glass Processors

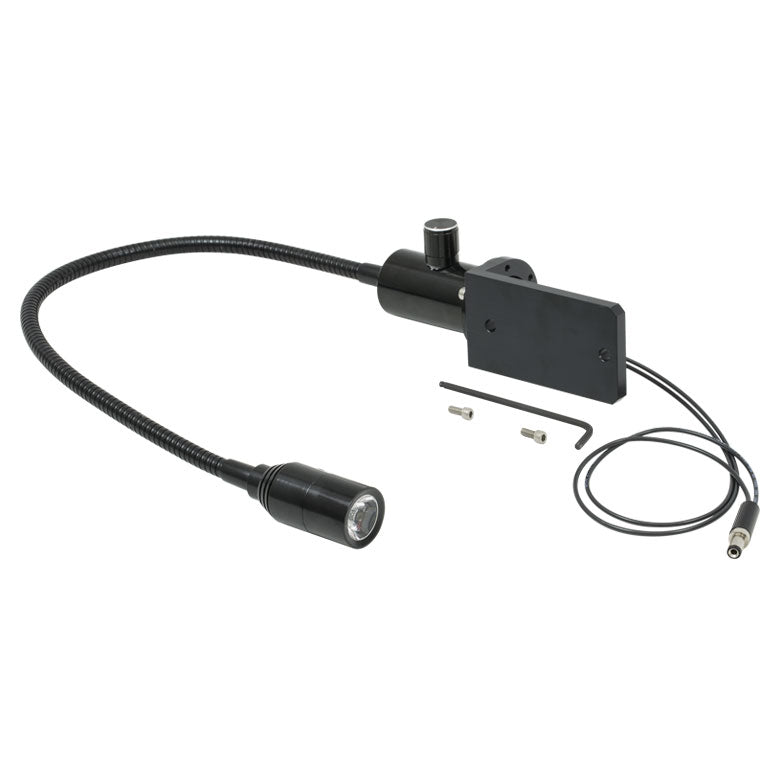

The THGPXL1 Gooseneck Light is a lamp that can be used to couple light into a fiber combiner for end-view illumination or for general lighting of the workstation during alignment. The lamp features an on/off switch and a dimmer knob to control brightness. The flexible neck allows the lamp head to be easily positioned near a fiber or furnace.
Mount the THGPXL1 on either side of the workstation using the mounting holes on the workstation Two 10-32 mounting screws and a 5/32" hex key are included.
| THGPXL1 Gooseneck Light Specifications | |
|---|---|
| Lamp Electrical Power | 1 W |
| Color Rendering Index (CRI) | 80 |
| Lamp Lifetime | 30 000 h |
| Lamp Luminous Flux | 100 lm |
| Lamp Luminous Efficiency | 80 lm/W |
| Operating Temperature | -25 to 45 °C |
| Light Color | Neutral White |
| Input Voltage | 12 VDC |
