TH-MSB2328 - Aluminum Breadboard for LCC7201B, 230 mm x 280 mm x 9.5 m

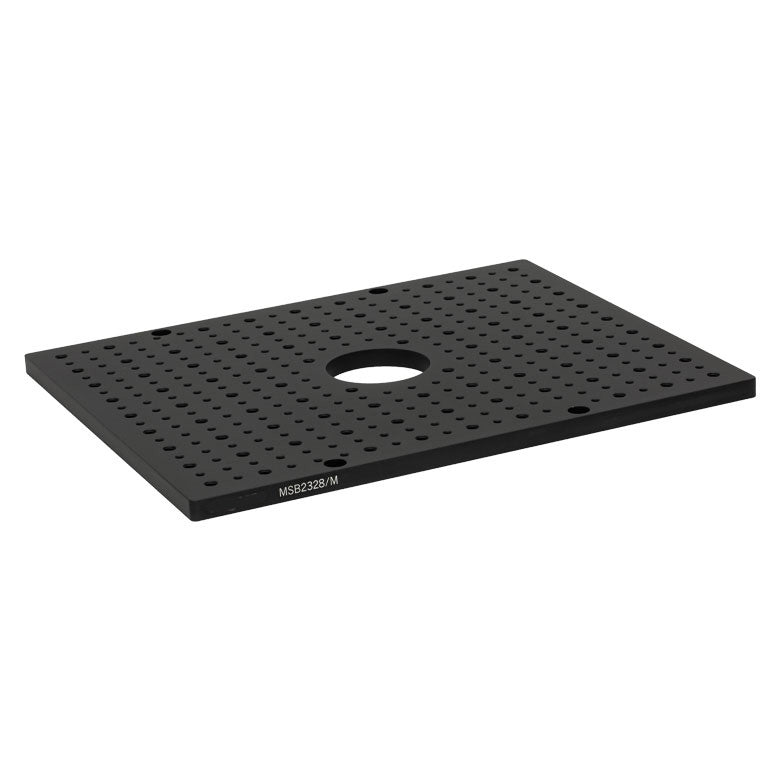

TH-MSB2328 - Aluminum Breadboard for LCC7201B, 230 mm x 280 mm x 9.5 mm, Ø50 mm Access Hole, 8-32 and 1/4"-20 Taps

Fosco Connect Part No.: THMSB2328

$ 318.00 or

TH-MSB2328 - Aluminum Breadboard for LCC7201B, 230 mm x 280 mm x 9.5 mm, Ø50 mm Access Hole, 8-32 and 1/4"-20 Taps

Breadboards Provide Flexible Mounting Platform
Adapter for Holding Recording Chambers and Slide Holder Inserts
Slide Holder Insert for Holding Microscope Slides

For samples requiring rotation or greater flexbility in mounting, the THMSB2328(-M) Aluminum Breadboards, MPSHA1 Slide Holder Insert and Recording Chamber Adapter, and aluminum (Item # THMPSH2) or stainless steel (Item # THMPSH2SS) Slide Holder Inserts are available for use with the THLCC7201B birefringence imaging system.

Breadboard Specifications

Top Surface Dimensions 9.06" x 11.02"

Breadboard Thickness 0.37"

Central Aperture Diameter 1.97"

Hole Threading and Spacing 8-32 Taps with 1/2" Spacing and 1/4"-20 Taps with 1" Spacing^a

Distance from Edge to First Hole 0.51" from the Short Edges and 0.53" from the Long Edges

Number of Counterbored Holes Four M5^b

Material Aluminum Plate

Finish Matte Black Anodized

Flatness ±0.010" (0.25 mm) over Entire Surface

a Note that the 8-32 (M4) and 1/4"-20 (M6) grids overlap.
b Aligned with Taps in LCC7201B Birefringence Imaging System
