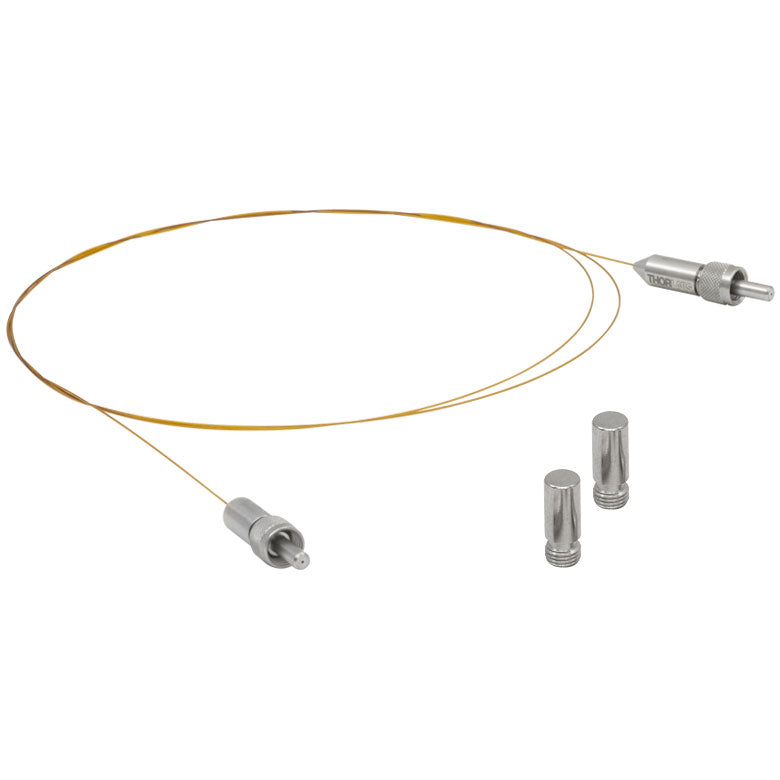

TH-MV11L1 - Ø100 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, High OH, 1 Meter

Fiber High OH, Polyimide Coated

Operating Range 250 - 1200 nm^b

Core Diameter 100 ± 3 µm

Cladding Diameter 120 ± 3 µm

Coating Diameter 140 ± 4 µm

NA 0.22

Bend Radius ≥6 mm (Short Term) ≥11 mm (Long Term)

Vacuum Level^a  1 x 10^-10 Torr

Continuous Operating Temperature^a 250 °C (Max)

• These patch cables can be operated continuously (>8 hours) in vacuum down to 10^-10 Torr and at temperatures up to 250 °C. They can also be operated intermittently (between 1 minute and 1 hour) at temperatures up to 280 °C.
• Solarization may occur at wavelengths below 300 nm

Product Drawing
