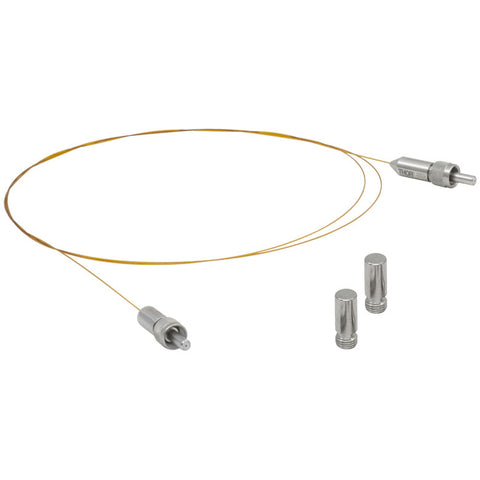

TH-MV41L1 - Ø400 µm, 0.22 NA, UHV, High-Temp. SMA Patch Cable, High OH, 1 Meter

Product Drawing

Fiber High OH, Polyimide Coated

Operating Range 250 - 1200 nm^b

Core Diameter 400 ± 8 µm

Cladding Diameter 440 ± 9 µm

Coating Diameter 480 ± 7 µm

NA  0.22

Bend Radius 106 mm (Long Term)^d 53 mm (Short Term)^c

Continuous Vacuum Level^a 1 x 10^-10 Torr

Continuous Operating Temperature^a 250 °C (Max)
