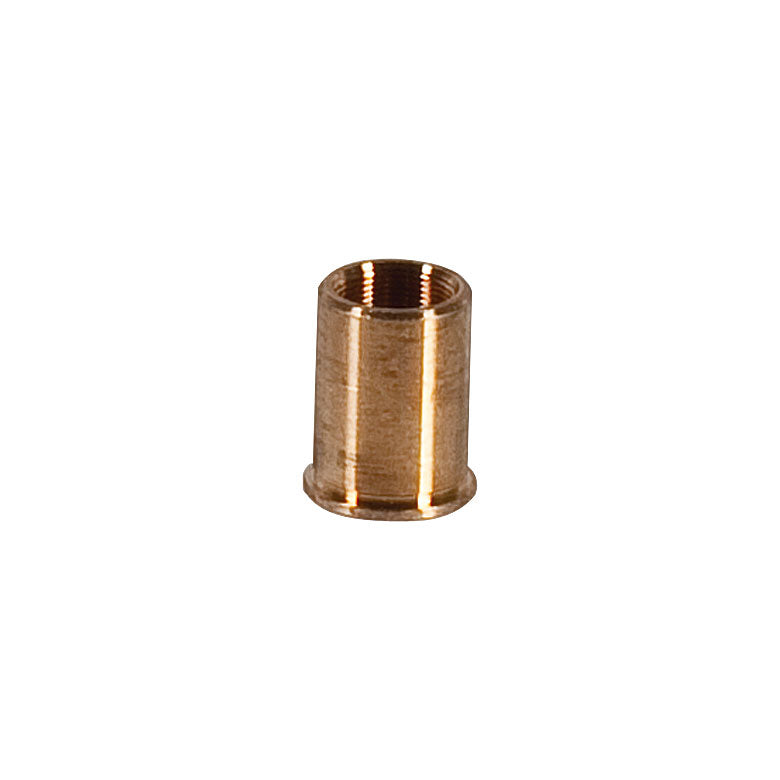

TH-N100B2P - Threaded Bushing, Phosphor Bronze, 3/16"-100, 0.34" Long
TH-N100B2P - Threaded Bushing, Phosphor Bronze, 3/16"-100, 0.34" Long
- Ideal for Slip Fit
- Three Lengths Available
- Made from 510 Phosphor Bronze (Vacuum Rated for 10-6 Torr)
- Recommended Bore Diameter:
- N100: 0.2415" +0.0005"/-0.0000"
- F19: 0.2895" +0.0005"/-0.0000"
- The THN100B2P and THF19SS series threaded bushings are designed for slip fit applications, as the 3/16"-100 threading tolerances are too tight for press fit. The recommended bore diameter for our N100 bushings is 0.2415" +0.0005"/-0.000", and for our F19 bushings is 0.2895" +0.0005/-0.0000". Each bushing is made of phosphor bronze in order to prevent damage to the fine adjusters. Phosphor bronze offers advantages like vacuum compatibility over brass. For vacuum applications, we recommend a thorough ultrasonic cleaning to remove any grease or particulates prior to use.
