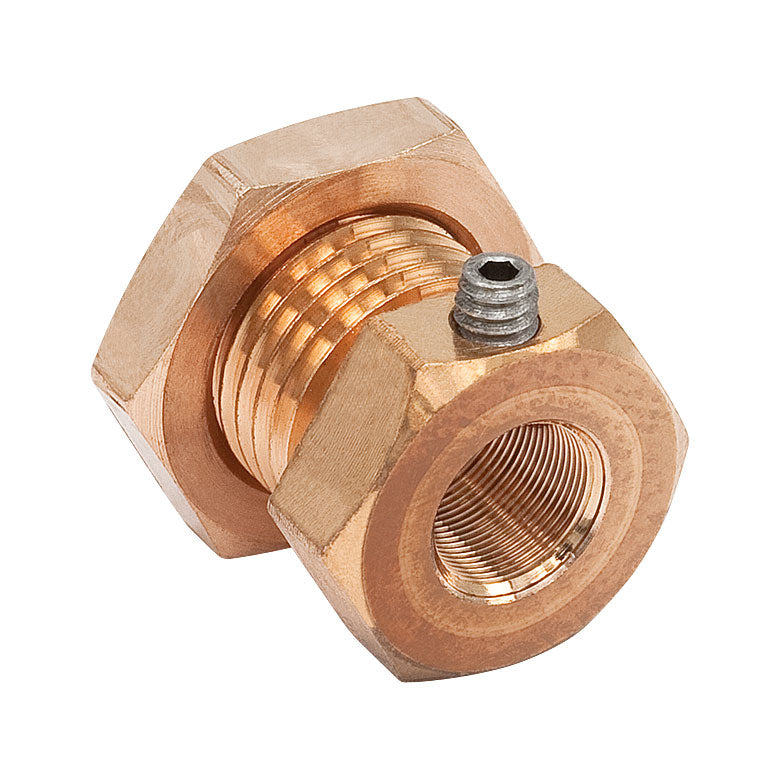

TH-N100L5P - Fine Phosphor-Bronze Locking Bushing with Nut, 3/16"-100
TH-N100L5P - Fine Phosphor-Bronze Locking Bushing with Nut, 3/16"-100
- Material: 510 Phosphor Bronze (Vacuum Rated for 10-6 Torr)
- Installed Using the 7/16" Hex Locking Nut
- Adjuster Screws Can be Locked in Place with the Side-Located Setscrew
This 3/16"-100 threaded bushing is made from 510 Phosphor Bronze (vacuum rated for 10-6 torr) and includes a removable nut with a 7/16" hex. The sleeve can be mounted in a clearance hole, using the 7/16" hex nut to lock them into place. Adjusters installed in this bushing can be locked in place via a side-located setscrew. For vacuum applications, we recommend a thorough ultrasonic cleaning to remove any grease or particulates prior to use.
