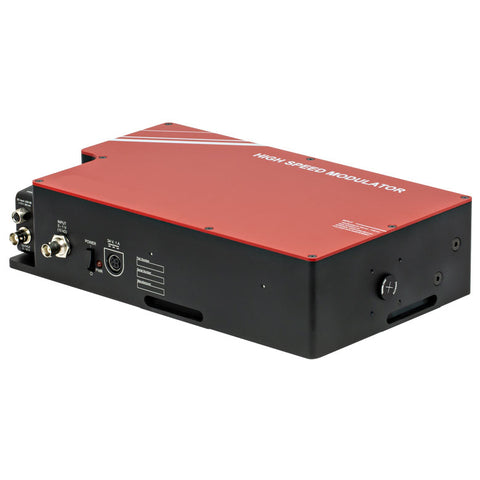

TH-OM6N - Fast Laser Power Modulator, 700 - 1100 nm, >250:1 Contrast, 8-32 Taps
TH-OM6N - Fast Laser Power Modulator, 700 - 1100 nm, >250:1 Contrast, 8-32 Taps
Contrast Ratio >250:1
Operating Rangea 700 - 1100 nm

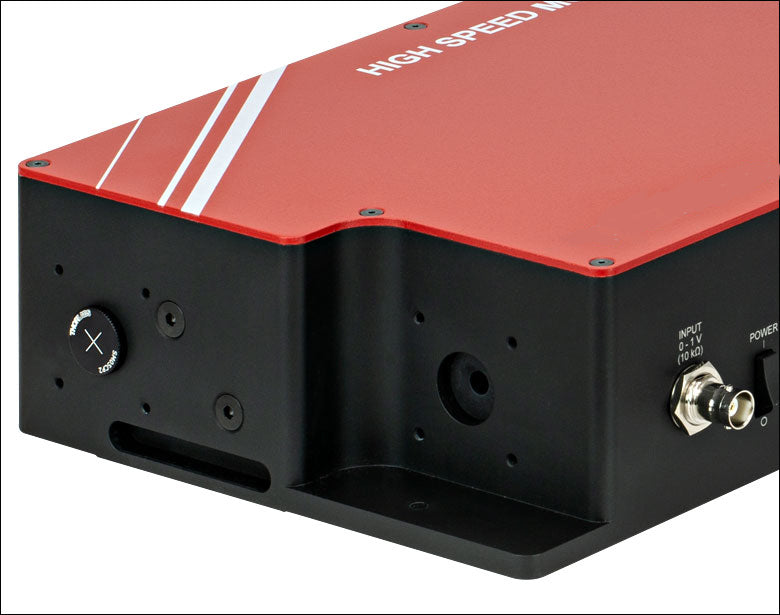

Included Photodetector Si Switchable Gain Detector, 320 - 1100 nm, 11 MHz BW, 75.4 mm², Universal 8-32 / M4 Taps
| Input Polarization | Any | ||
| Rise Timeb | 1.5 - 5 µs | ||
| Fall Time | <2 µs | ||
| Modulation Frequency | 0 - 20 kHz | ||

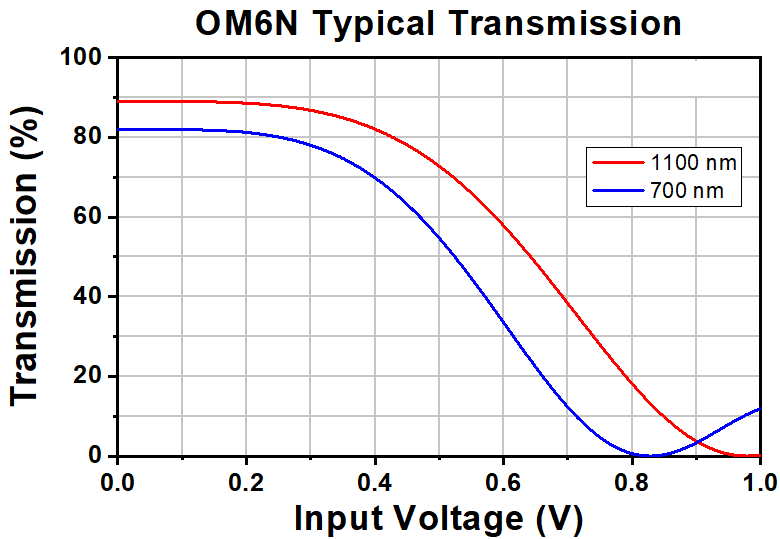

| Modulation Voltagec | 0 - 1 V | ||
| Input Impedancec | 10 kΩ | ||
| Transmission (at 800 nm) | >80% | ||
| Input Pulse Energy | 500 nJ (Max) | ||
| Input Optical Power | 10 W (Max) | ||
| Internal Apertured | Ø3.8 mm | ||
| Internal Optical Path Length | 100 cm | ||
| Dispersion | <100 fs2 | ||
| Transmitted Wavefront Errore | <λ/4 (at 633 nm) | ||
| Power Supply | 24 V, 1 A | ||

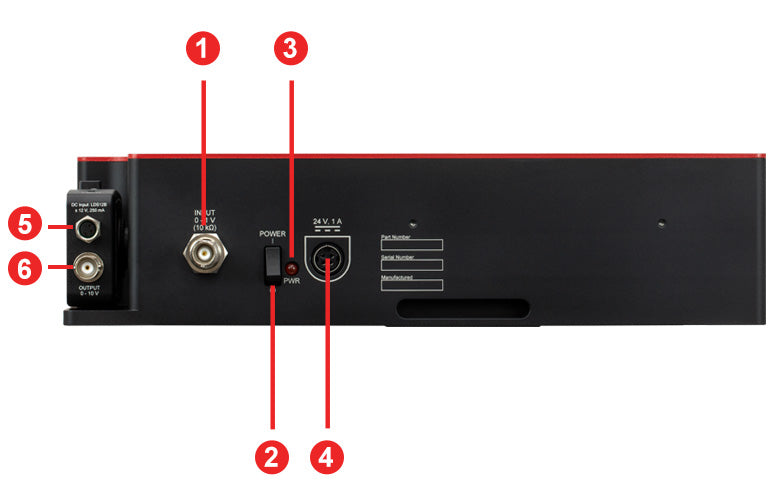

| Power Connector | R7B Female Connector | ||
| Operating Temperature | 15 - 35 °C | ||
| Operating Humidity | 20 - 60% | ||
| Storage Temperature | -25 - 70 °C | ||
| Housing Dimensions (L x W x H) | 11.45" x 6.83" x 2.80" (290.8 mm x 173.4 mm x 71.1 mm) |
||
