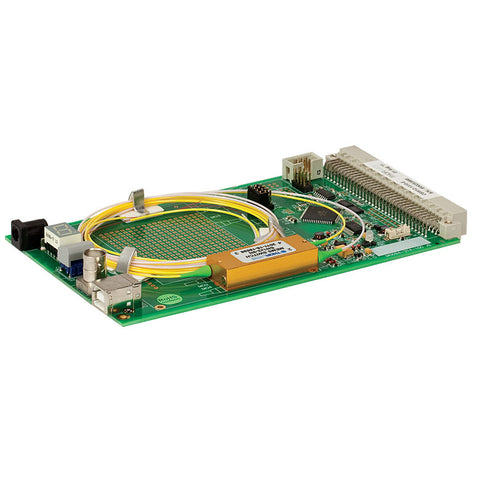

TH-OSW12-488E - MEMS 1x2 Fiber Optic Switch Kit, 480-650 nm, No Connector
TH-OSW12-488E - MEMS 1x2 Fiber Optic Switch Kit, 480-650 nm, No Connector
- 1x2 Optical Switch
- Models Covering Wavelengths from 480 - 1625 nm
These 1x2 bidirectional switch kits feature one input and two outputs. They are ideal for switching between two input signals or switching a signal between two destinations. MEMS technology ensures fast switching (<1 ms), high reliability, and exceptionally low crosstalk.
Operating Wavelength 480 - 650 nm
Insertion Loss Max 2.0 dB at 488 nm
Cross Talk Typical: 75 dB / Max: 60 dB
Polarization Dependent Loss Typical: 0.02 dB / Max: 0.05 dB
Backreflection Typical: 55 dB / Max: 50 dB
Switching Speed Typical: 0.5 ms / Max: 1 ms
Max. Optical Power 30 mW
Fiber Type (Single Mode) Fibercore SM450
Mode-Field Diameter 3.3 µm
Optical Connector None (or On Request)
Lifetime (No Wear Out) Proven up to 109 Switching Cycles
Operation Non-Latching
Control On Board Switch, TTL Signal or USB Remote Control
Operating Voltage 4.75 - 5.25 VDC 300 mA (USB Connector) or 6 - 15 VDC 300 mA (DC Power Connector)
Wall Power Supply (Included ) 90 - 264 VAC / 9 VDC 1.1 A
Operating Temperature 0 to 40 °C
Storage Temperature -40 to +70 °C
Dimensions (L x W x H) 170 mm x 100 mm x 20 mm
Weight <0.3 kg
