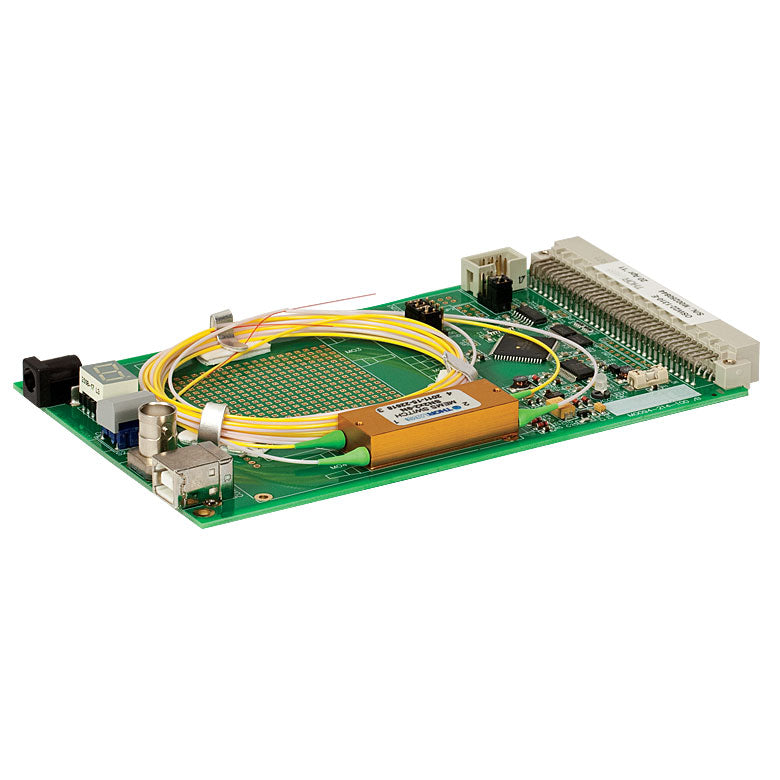

TH-OSW22-980E - MEMS 2x2 Fiber Optic Switch Kit, 970-1170 nm, No Connector
TH-OSW22-980E - MEMS 2x2 Fiber Optic Switch Kit, 970-1170 nm, No Connector
- 2x2 Optical Switch
- Models Covering Wavelengths from 480 - 1625 nm
These 2x2 bidirectional optical switches, which have two inputs and two outputs, feature straight and cross switching modes, where each input can be routed to one of two outputs. (1→3 and 2→4, or 1→4 and 2→3). MEMS technology ensures fast switching (<1 ms), high reliability, and exceptionally low crosstalk.
Operating Wavelength 970 - 1170 nm
Insertion Loss Typical: 0.7 dB / Max: 1.5 dB
Cross Talk Typical: 75 dB / Max: 60 dB
Polarization Dependent Loss Typical: 0.02 dB / Max: 0.05 dB
Backreflection Typical: 55 dB / Max: 50 dB
Switching Speed Typical: Typical: 0.5 ms / Max: 1 ms
Max. Optical Power 105 mW
Fiber Type (Single Mode) Fibercore SM980
Mode-Field Diameter 6.2 µm
Optical Connector None (or On Request)
Lifetime (No Wear Out) Proven up to 109 Switching Cycles
Operation Non-Latching
Control On Board Switch, TTL Signal or USB Remote Control
Operating Voltage 4.75 - 5.25 VDC 300 mA (USB Connector) or 6 - 15 VDC 300 mA (DC Power Connector)
Wall Power Supply (Included ) 90 - 264 VAC / 9 VDC 1.1 A
Operating Temperature 0 to 40 °C
Storage Temperature -40 to +70 °C
Dimensions (L x W x H) 170 mm x 100 mm x 20 mm
Weight <0.3 kg
