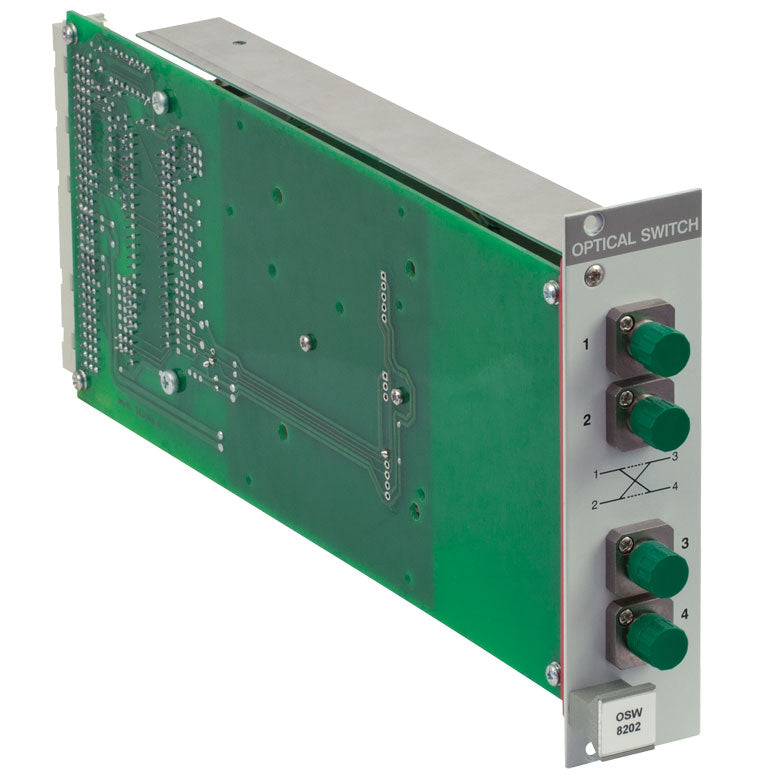

TH-OSW8202 - PRO8 Series Optical Switch, 2 x 2 MEMS, FC/APC, 1 Slot Wide

• Operating Wavelength: 1240 - 1610 nm
• Switching Time: <1 ms
• MEMS-Based Fiber Optic Switches
• Four Switching Configurations: 1 x 2, 1 x 4, 1 x 8, or 2 x 2
• LabVIEW™ and LabWindows™/CVI Drivers
• All Models Occupy 1 PRO8 Slot
• Switching Configuration 2 x 2
• Switching Time 0.5 ms Typical (1 ms Max)
• Wavelength Range 1240 to 1610 nm
• Input Power (Max) +17 dBm
• Insertion Loss (Typical/Max)^a 0.7 dB / <1.5 dB
• PDL (1550 nm) <0.15 dB
• Crosstalk <-50 dB
• Repeatability ±0.01 dB
• Return Loss -50 dB
• Connectors FC/APC; Others Upon Request
• Operating Temperature 0 to 35 °C
• Storing Temperature -10 °C to +60 °C
• Module Width 1 PRO8 Slot
