TH-RJPS4 - SMA to SMA, Ø400 µm, 0.39 NA, Rotating Patch Cable, 2 m Long
TH-RJPS4 - SMA to SMA, Ø400 µm, 0.39 NA, Rotating Patch Cable, 2 m Long

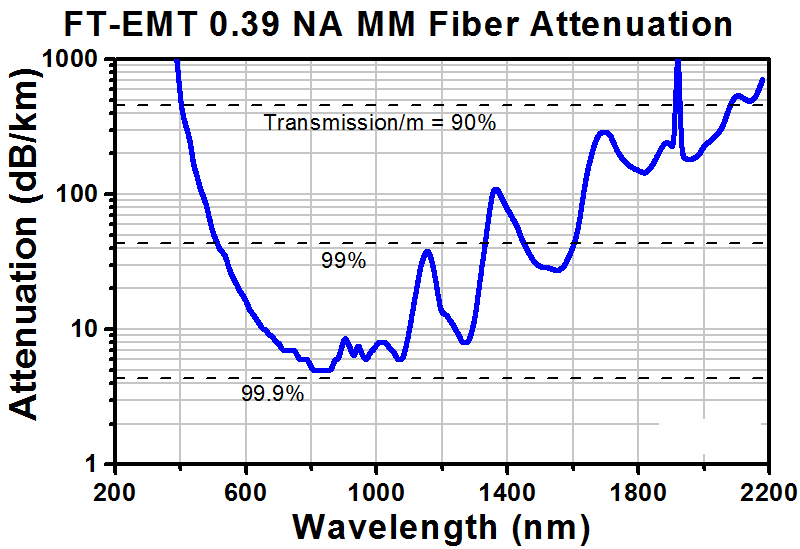

Fiber THFT400EMT 0.39 NA, Ø400 µm Core Multimode Optical Fiber, Low OH for 400 - 2200 nm, TECS Clad
Core Diameter 400 ± 8 µm
Cladding Diameter 425 ± 10 µm
NA 0.39
Bend Radius (Short Term/Long Term) 20 mm / 40 mm
Wavelength Range 400 - 2200 nm (Low OH)
Connectors Standard SMA905 Multimode Connector, Ø440 µm Bore, SS Ferrule
Jacket Orange Reinforced Ø2 mm Furcation Tubing
