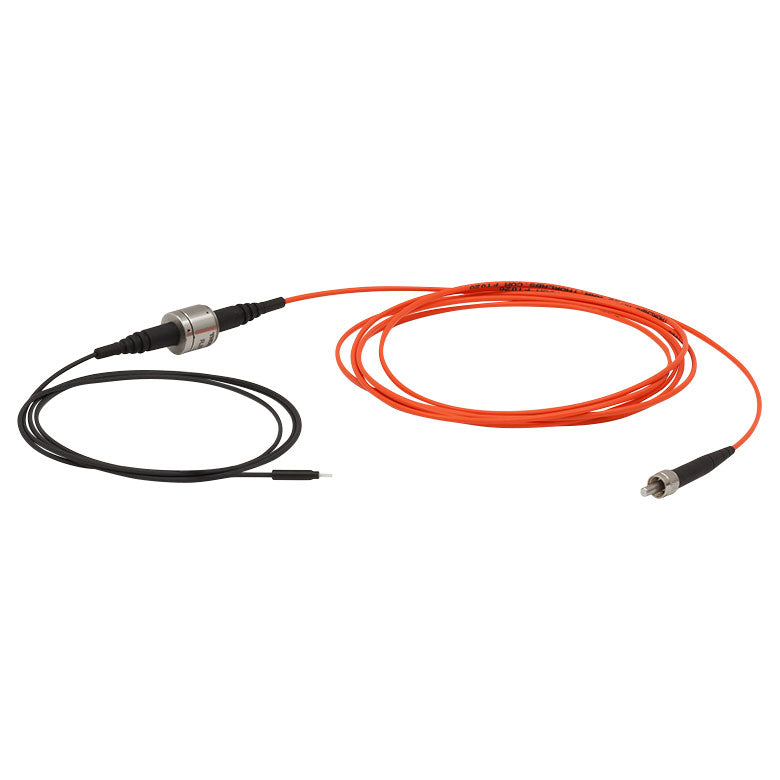

TH-RJPSL4 - SMA to Ø1.25 mm Ferrule Rotary Joint Patch Cable, Ø400 µm Core, 3 m Long
TH-RJPSL4 - SMA to Ø1.25 mm Ferrule Rotary Joint Patch Cable, Ø400 µm Core, 3 m Long
- Heat-Shrink Tubing (Ø1/16") Minimizes the Pressure on the Specimen
- Patch Cable Length: 3 m
- Fiber Type 0.39 NA, Ø400 µm Core Multimode Optical Fiber, Low OH for 400 - 2200 nm, TECS Clad
- Wavelength Range (Click for Plot)
- Core Diameter 400 µm ± 8 µm
- NA 0.39
- Transmission through Rotary Jointa >63% (<2.0 dB); ±8% (±0.4 dB)
Variation During Rotation - Cable Mass 342 g
- Ferrule Diameter 1.25 mm mm
- Ferrule Material Ceramic (Zirconia)
