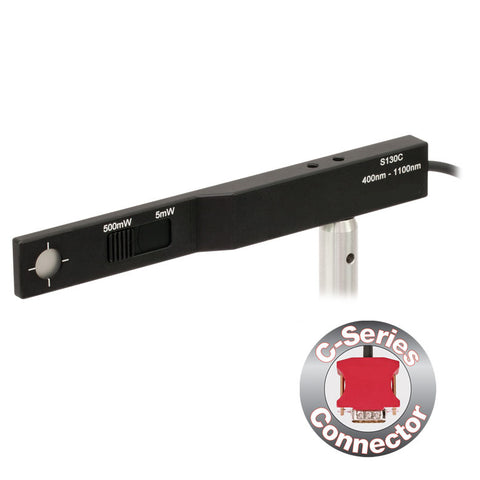

TH-S130C - Slim Photodiode Power Sensor, Si, 400 - 1100 nm, 500 mW
TH-S130C - Slim Photodiode Power Sensor, Si, 400 - 1100 nm, 500 mW
- For Optical Power Measurements in Confined Spaces
- Slim Design: 5 mm Thin on Sensor Side
- Ø9.5 mm Sensor Aperture
- Slideable ND Filter Automatically Changes Sensor Power Range
- Aperture Size Ø9.5 mm
- Wavelength Range 400 - 1100 nm
- Power Range with fillter 500 pW - 5 mW (Up to 500 mW)
- Detector Type Si Photodiode
- Linearity ±0.5%
- Resolutionc 100 pWe
-
Measurement Uncertaintyd±3% (440 - 980 nm) ±5% (400 - 439 nm) ±7% (981 - 1100 nm)
- Coating/Diffuser RReflective ND (OD2)i
- Housing Dimensions 150 mm x 19 mm x 10 mm; 5 mm Thickness on Sensor Side
- Active Detector Area 9.7 mm x 9.7 mm
- Cable Length 1.5 m
- Mounting Thread Separate 8-32 and M4 Taps, Posts Not Included
