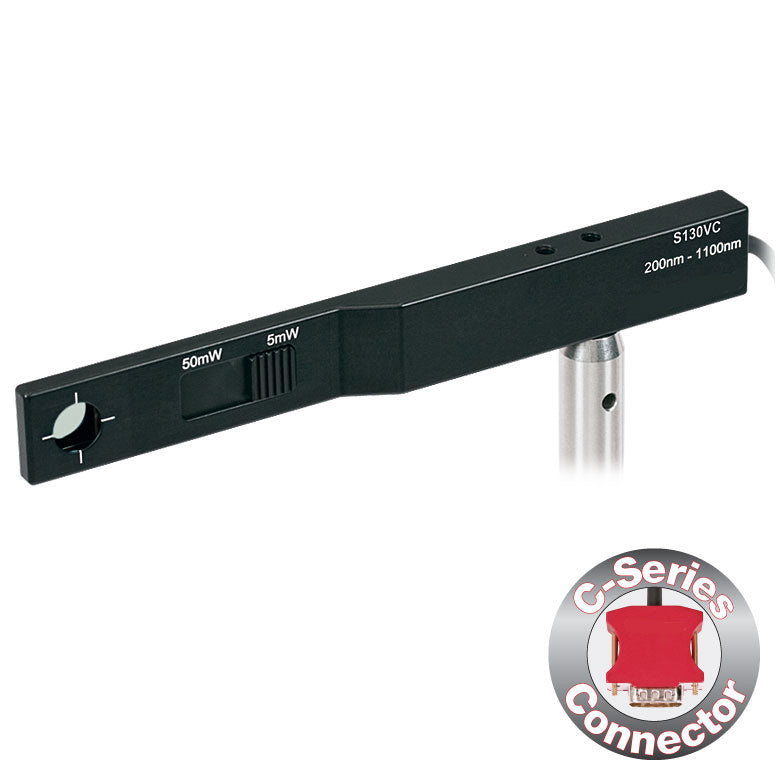

TH-S130VC - Slim Photodiode Power Sensor, UV-Extended Si, 200 - 1100 nm, 50 mW

• For Optical Power Measurements in Confined Spaces
• Slim Design: 5 mm Thin on Sensor Side
• Ø9.5 mm Sensor Aperture
• Slideable ND Filter Automatically Changes Sensor Power Range
• Aperture Size Ø9.5 mm
• Wavelength Range 200 - 1100 nm
• Power Range with fillter  500 pW - 0.5 mW^d(Up to 50 mW)^d

• Detector Type Si Photodiode (UV Extended)
• Linearity ±0.5%
• Resolution^c  100 pW^e
• Measurement Uncertainty^d±3% (440 - 980 nm) ±5% (280 - 439 nm) ±7% (200 - 279 nm, 981 - 1100 nm)


• Coating/Diffuser Reflective Reflective ND (OD1.5)^d
• Housing Dimensions 150 mm x 19 mm x 10 mm; 5 mm Thickness on Sensor Side
• Active Detector Area 9.7 mm x 9.7 mm
• Cable Length 1.5 m
• Mounting Thread Separate 8-32 and M4 Taps, Posts Not Included

Product Drawing
