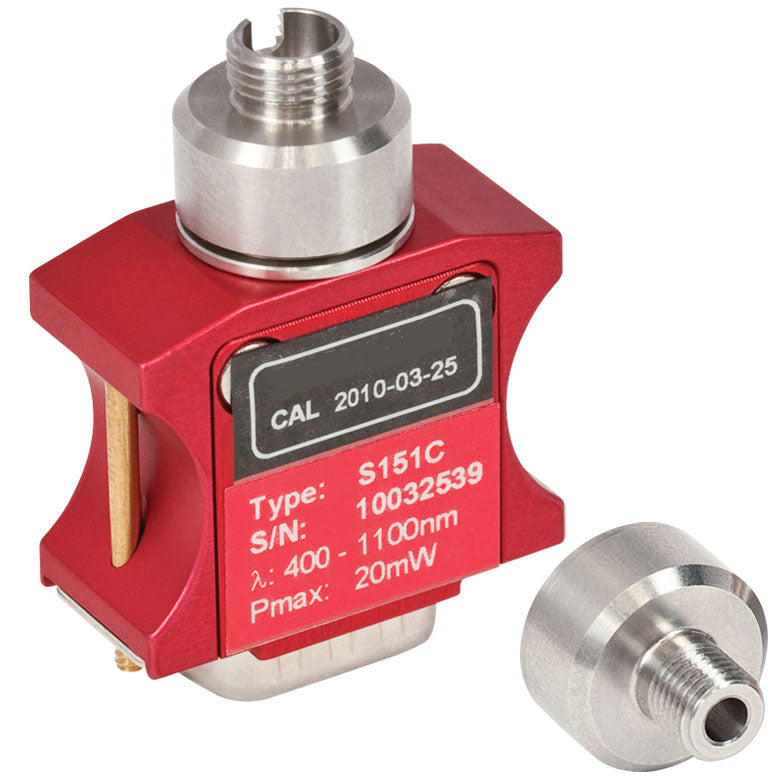

TH-S151C - Compact Fiber Photodiode Power Sensor, Si, 400 - 1100 nm, 2

TH-S151C - Compact Fiber Photodiode Power Sensor, Si, 400 - 1100 nm, 20 mW

Fosco Connect Part No.: THS151C

TH-S151C - Compact Fiber Photodiode Power Sensor, Si, 400 - 1100 nm, 20 mW

Wavelength Range 400 - 1100 nm

Power Range 1 nW to 20 mW (-60 dBm to +13 dBm)

Detector Type Si Photodiode

Linearity ±0.5%

Resolution^b100 pW (-70 dBm)

Measurement Uncertainty^c±3% (440 - 980 nm) ±5% (400 - 439 nm) ±7% (981 - 1100 nm)

Coating/Diffuser Absorptive ND (Schott NG3)

Head Temperature Measurement^eNTC Thermistor 3 kΩ

Aperture Thread External SM05 (0.535"-40)
