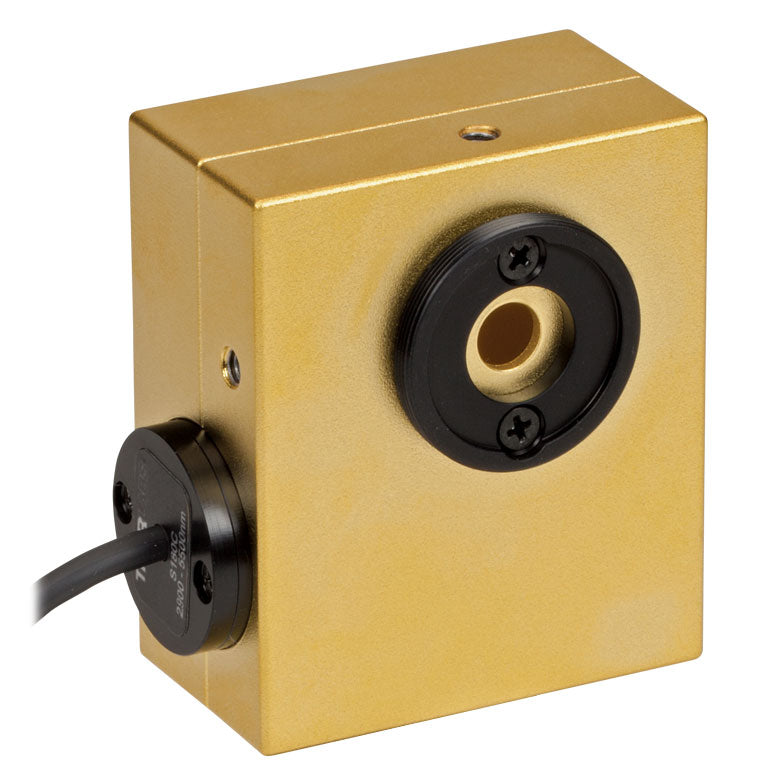

TH-S180C - Integrating Sphere Photodiode Power Sensor, MCT (HgCdTe), 2.9 - 5.5 µm, 3 W

Product Drawing

Aperture Size  Ø7 mm

Wavelength Range 2.9 µm - 5.5 µm

Power Range 1 µW - 3 W

Detector Type MCT (HgCdTe)Photodiode

Linearity ±0.5%

Resolution^b 10 nW

Measurement Uncertainty^c ±5%

Integrating Sphere Material (Size) Gold Plating (Two Ø20 mm Spheres)

Head Temperature Measurement NTC Thermistor 4.7 kΩ

Housing Dimensions 59.0 mm x 50.0 mm x 28.5 mm

Active Detector Area 1 mm x 1 mm

Cable Length 1.5 m

Mounting Thread Universal 8-32 / M4 Tap, Post Not Included

Aperture Thread Included Adapter with SM1 (1.035"-40) External Thread
